BSIDE NEW Thermal Imager Camera HX1 HX3 Laser Thermographic HD Resolution For Circuit PCB Repair Pipeline Detection Medical

Description





BSIDE HX1/HX3 Thermal Imager NEW Camera Laser Thermographic HD Resolution For Circuit PCB Repair Pipeline Detection Medical

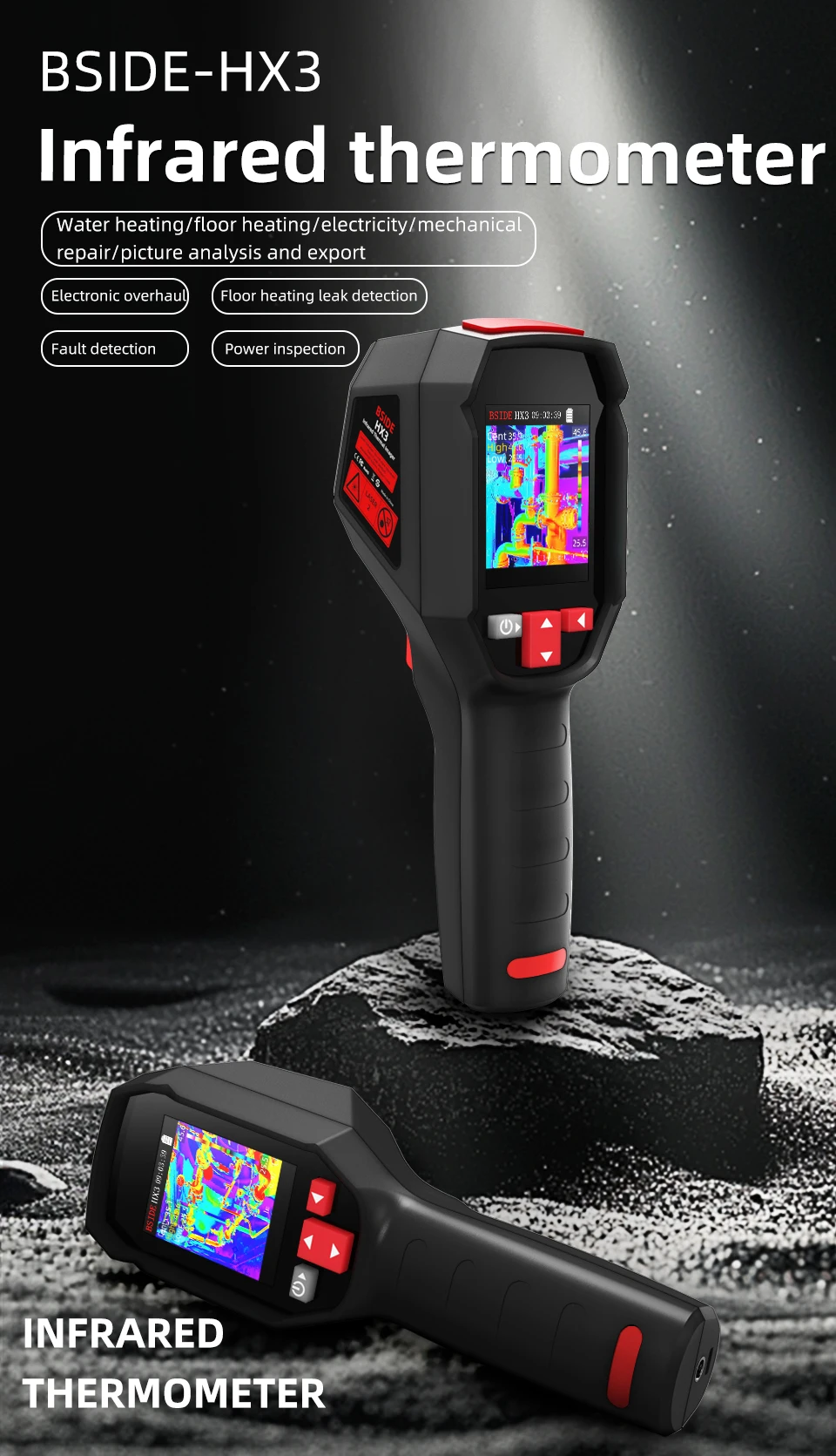

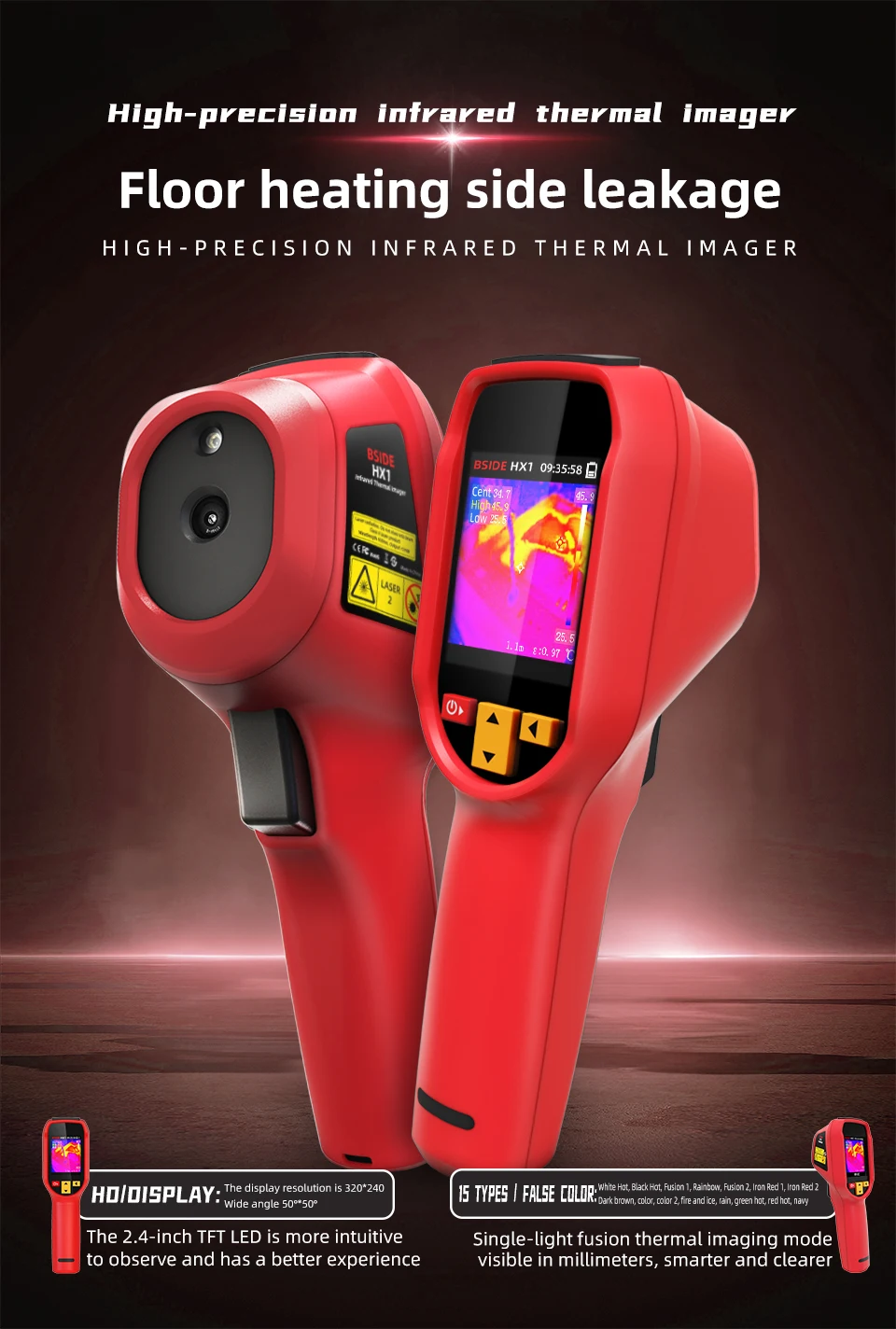

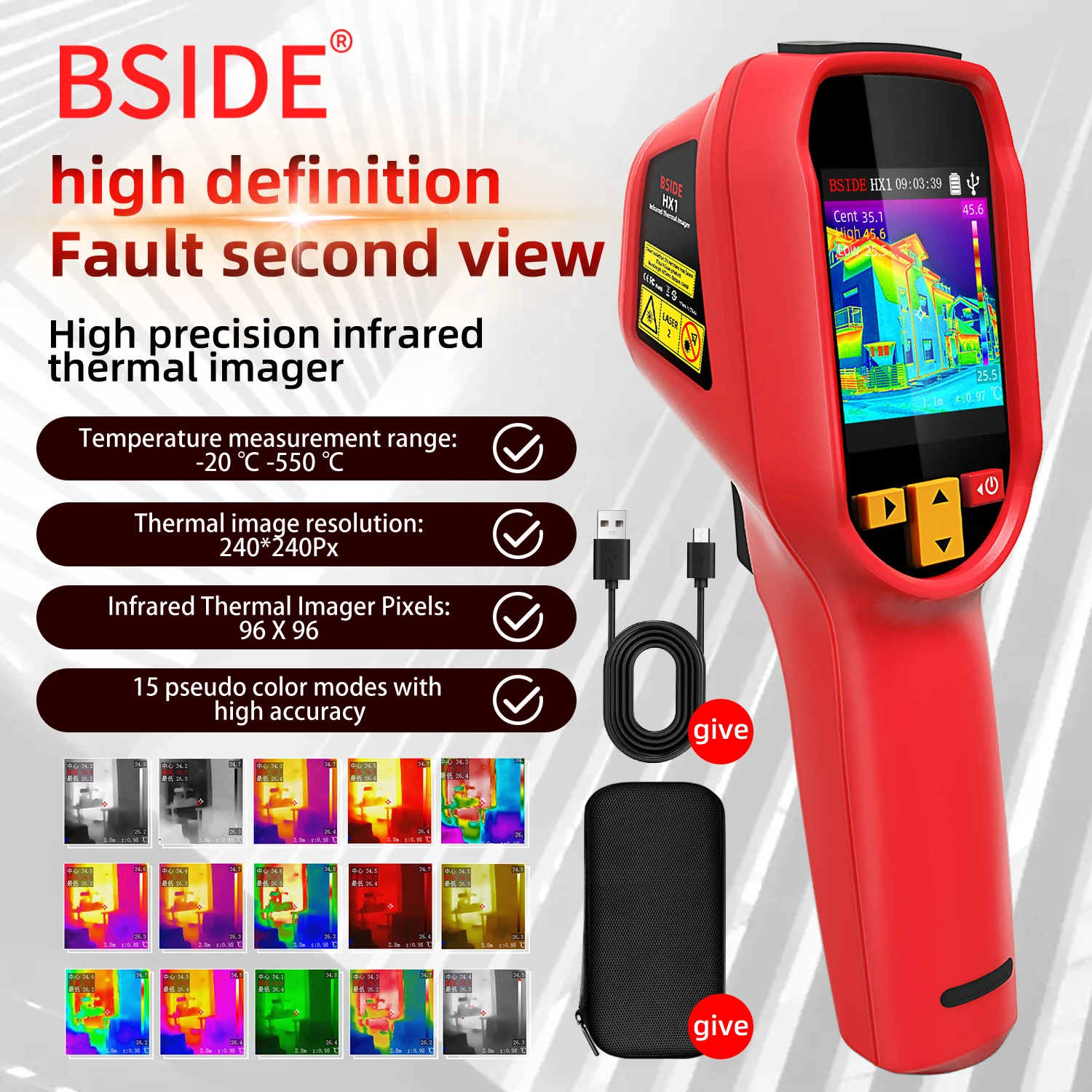

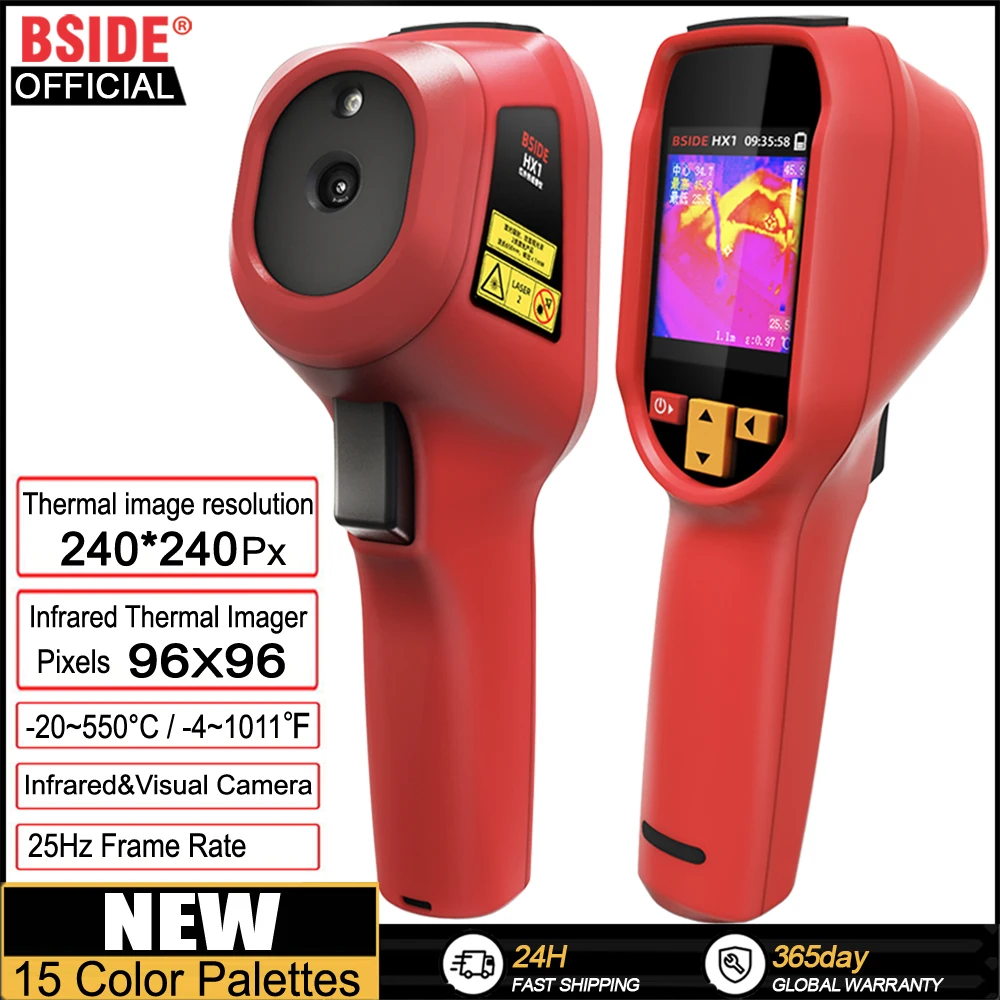

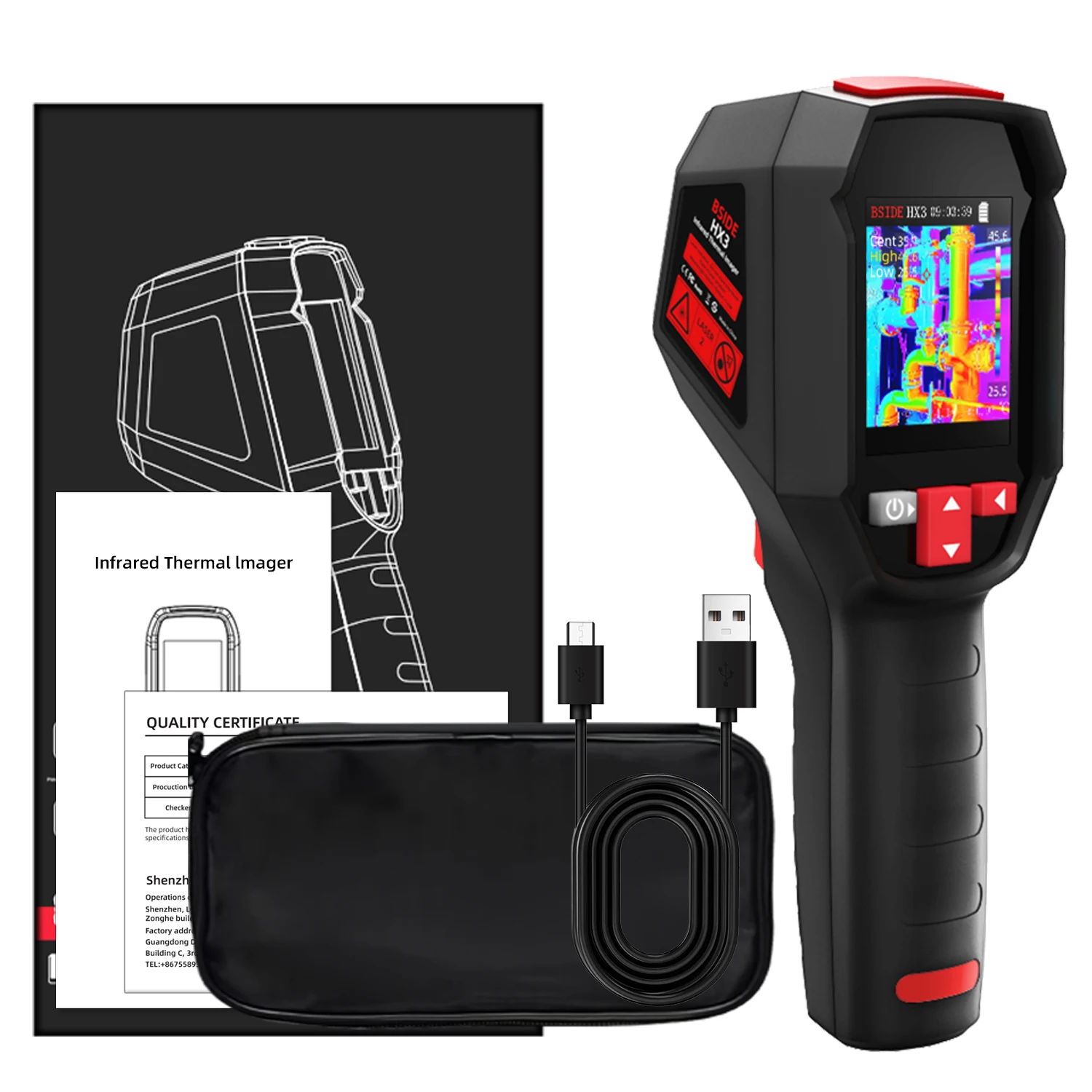

BSIDE HX1/HX3 is new handheld thermal imaging camera that combines temperature measurement and imaging.

2.4-inch screen，15 pseudo color modes ,  Thermal image resolution: 240*240Px, Infrared Thermal Imager Pixels: 96×96(25Hz Frame rate), Uses cutting-edge image stabilization technology

; High-accuracy High/Low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

BSIDE HX1 : The body adopts double injection molding process Durable.

BSIDE HX3：The body adopts single injection molding process，Better value for money.

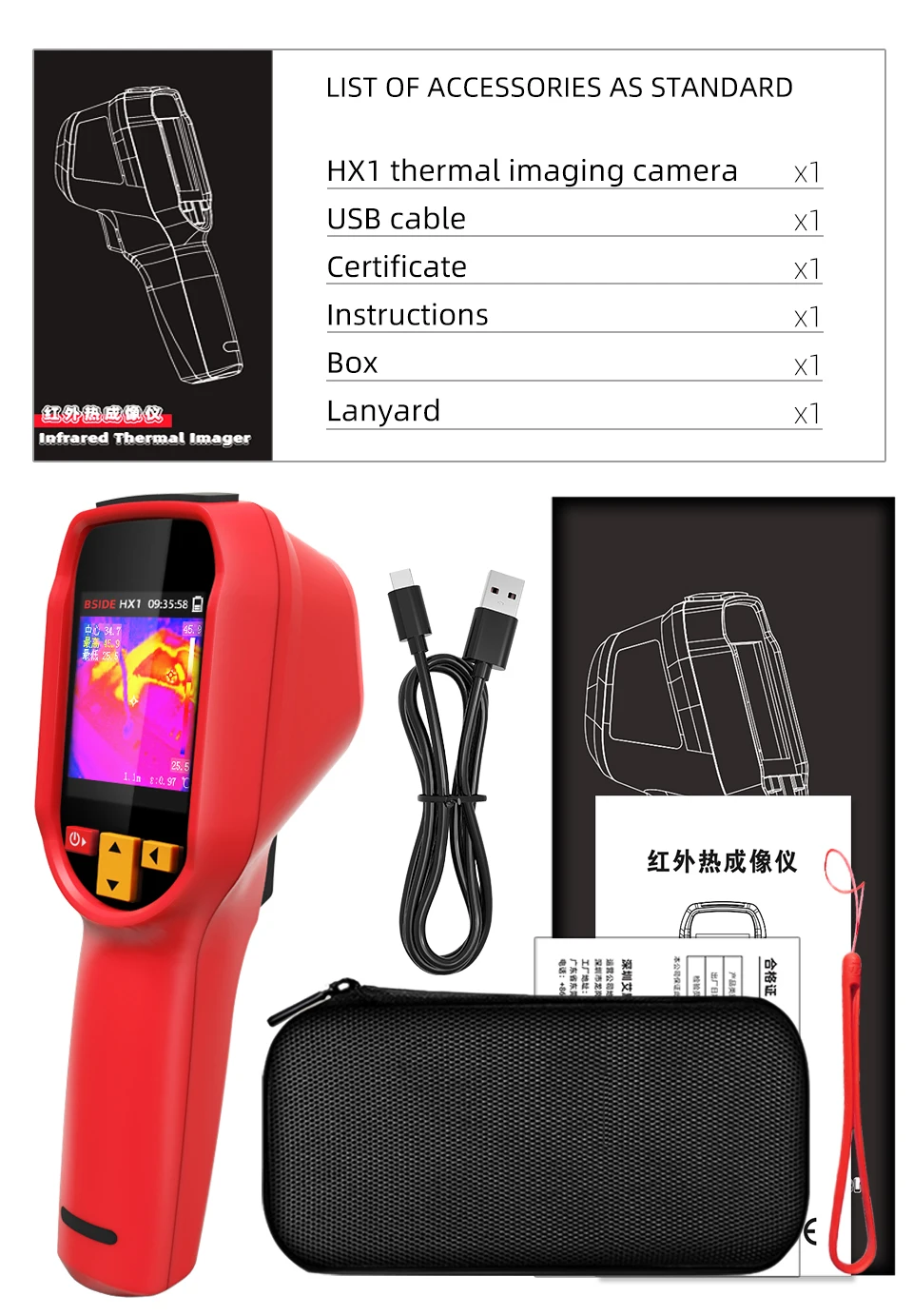

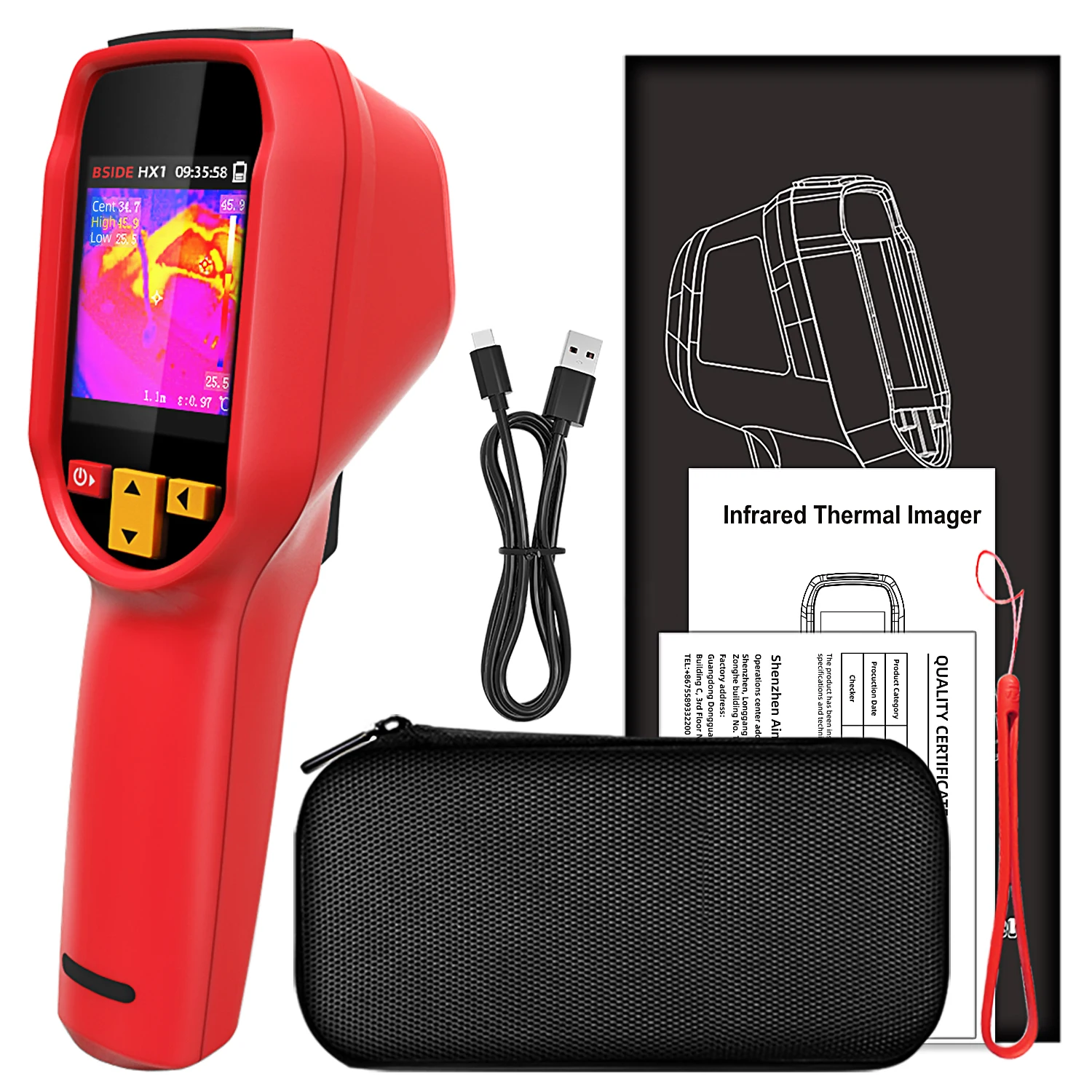

Also comes with a high-quality EVA handbag.



BSIDE HX1/HX3 products currently support upgrade to 8 language interfaces, English / Spanish / German / French / Russian / Italian / Japanese / Chinese.

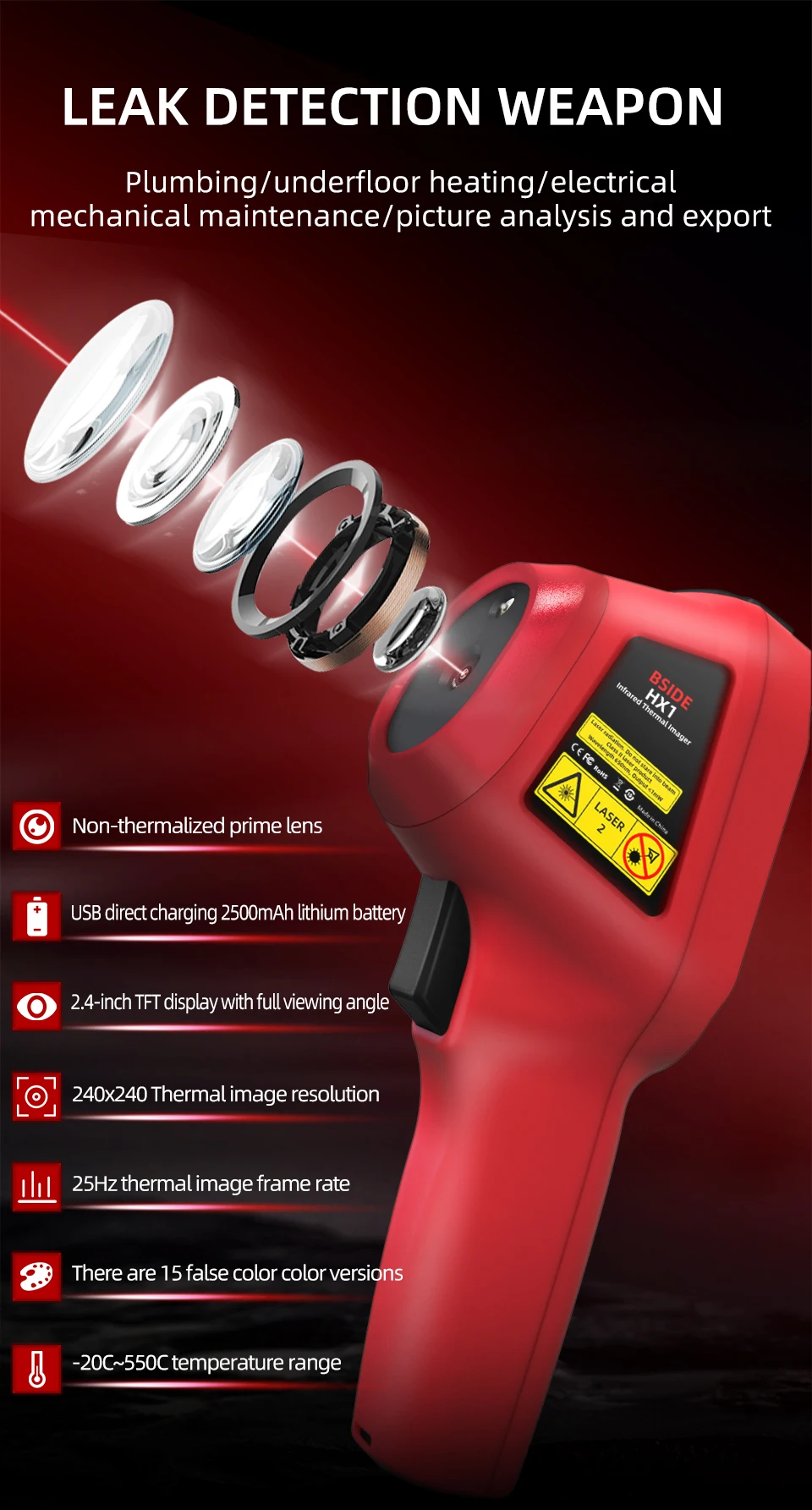

Main features of HX1/HX3

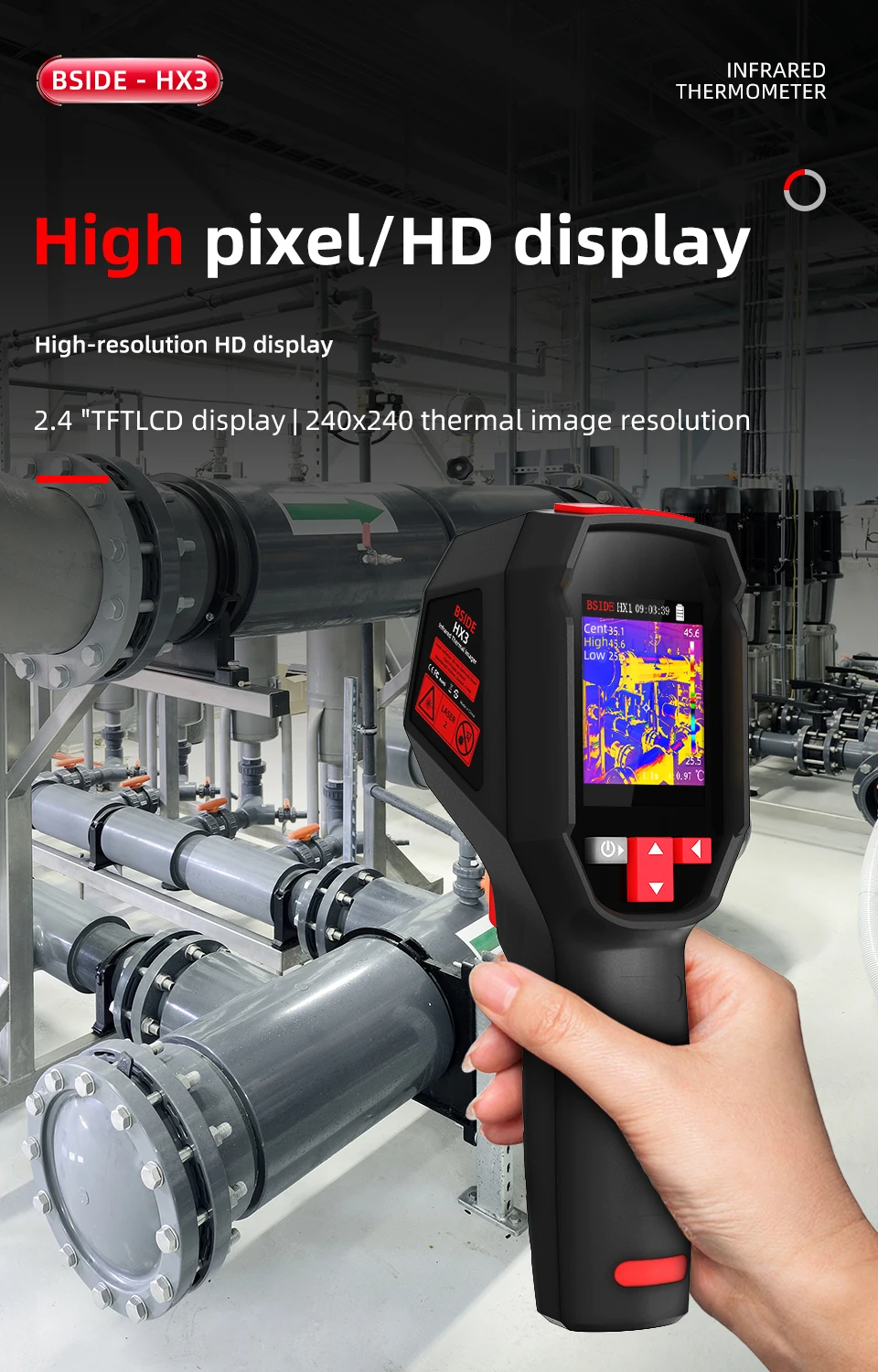

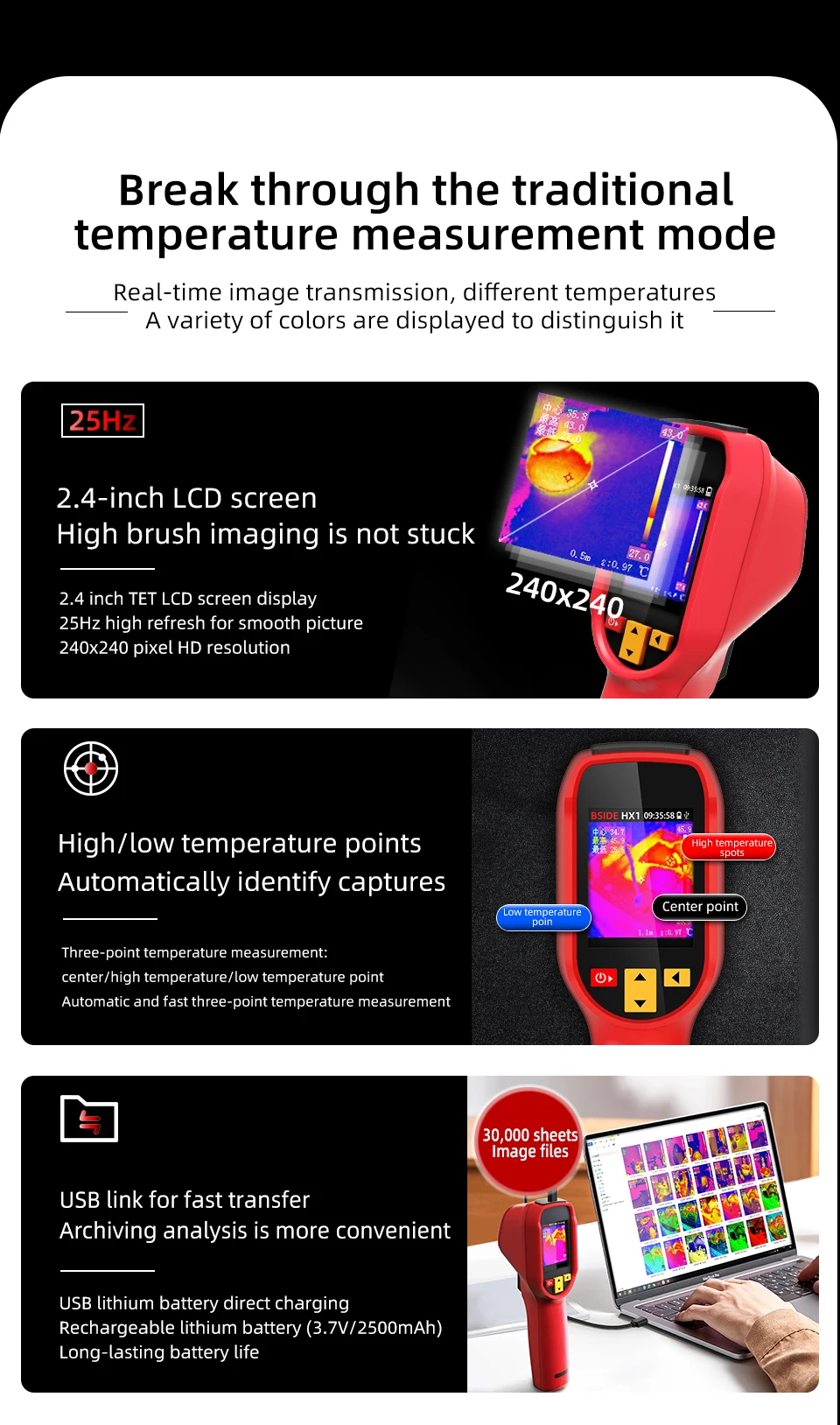

Screen: 2.4 inch LCD screen



Thermal image resolution: 240*240Px.
Infrared Thermal Imager Pixels: 96 x 96.



Frame rate: 25Hz

Uses cutting-edge image stabilization technology.



15 pseudo color modes



Temperature measurement range: -20 °C~550 °C

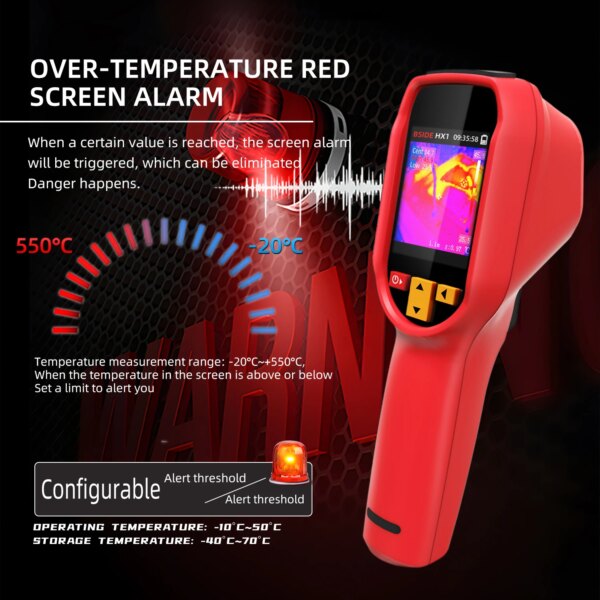

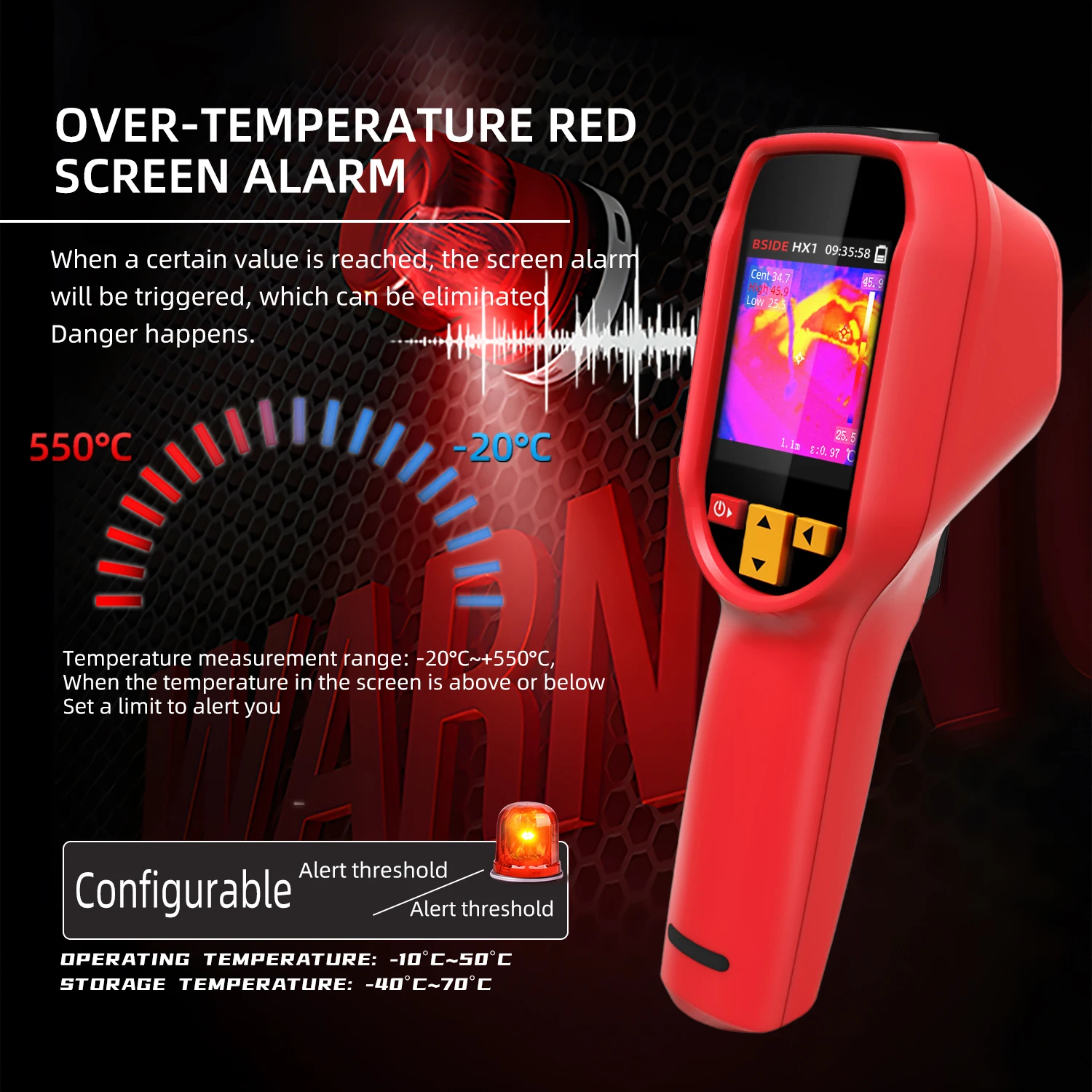

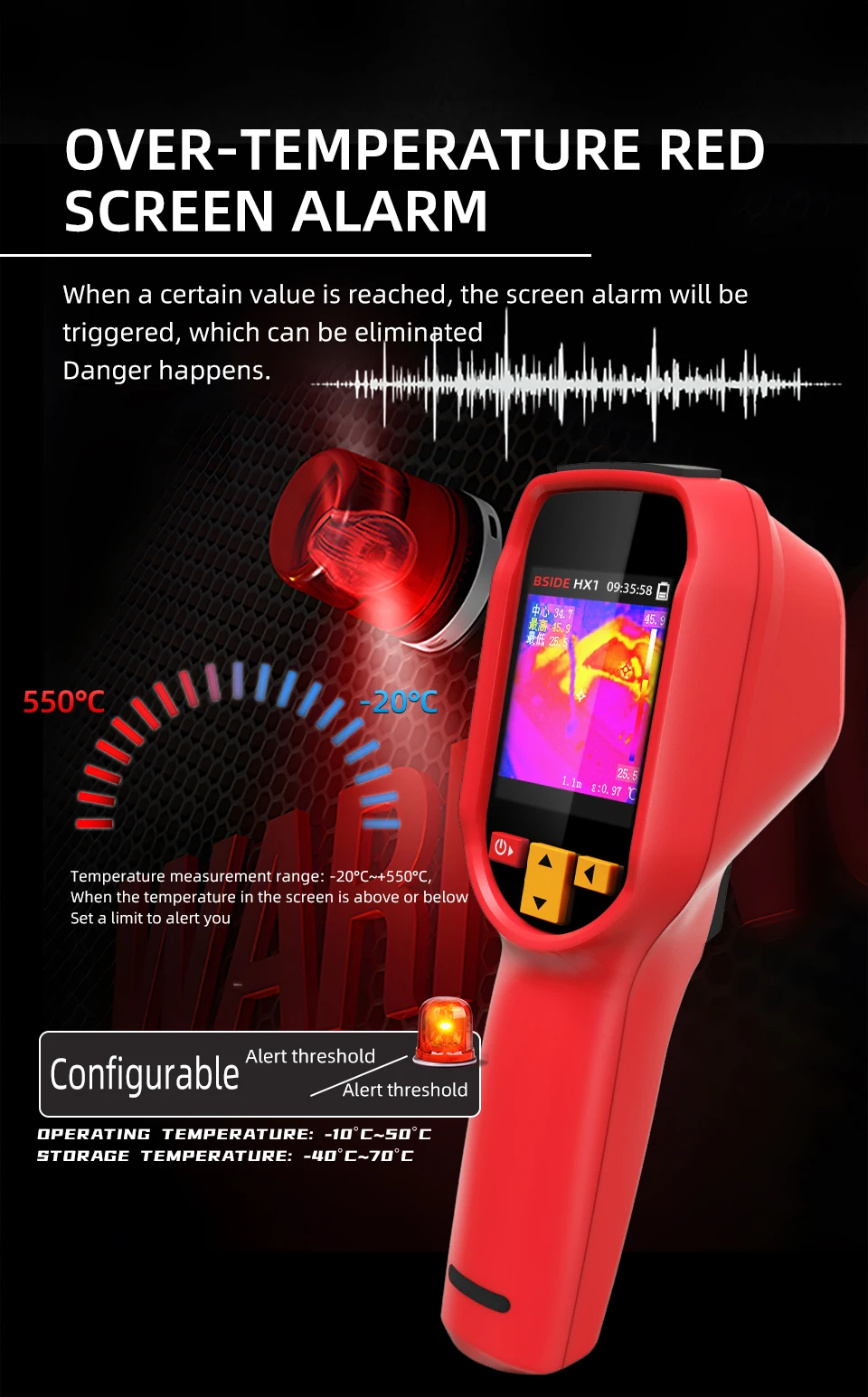

High and low temperature alarms: image, buzz, LED flashing

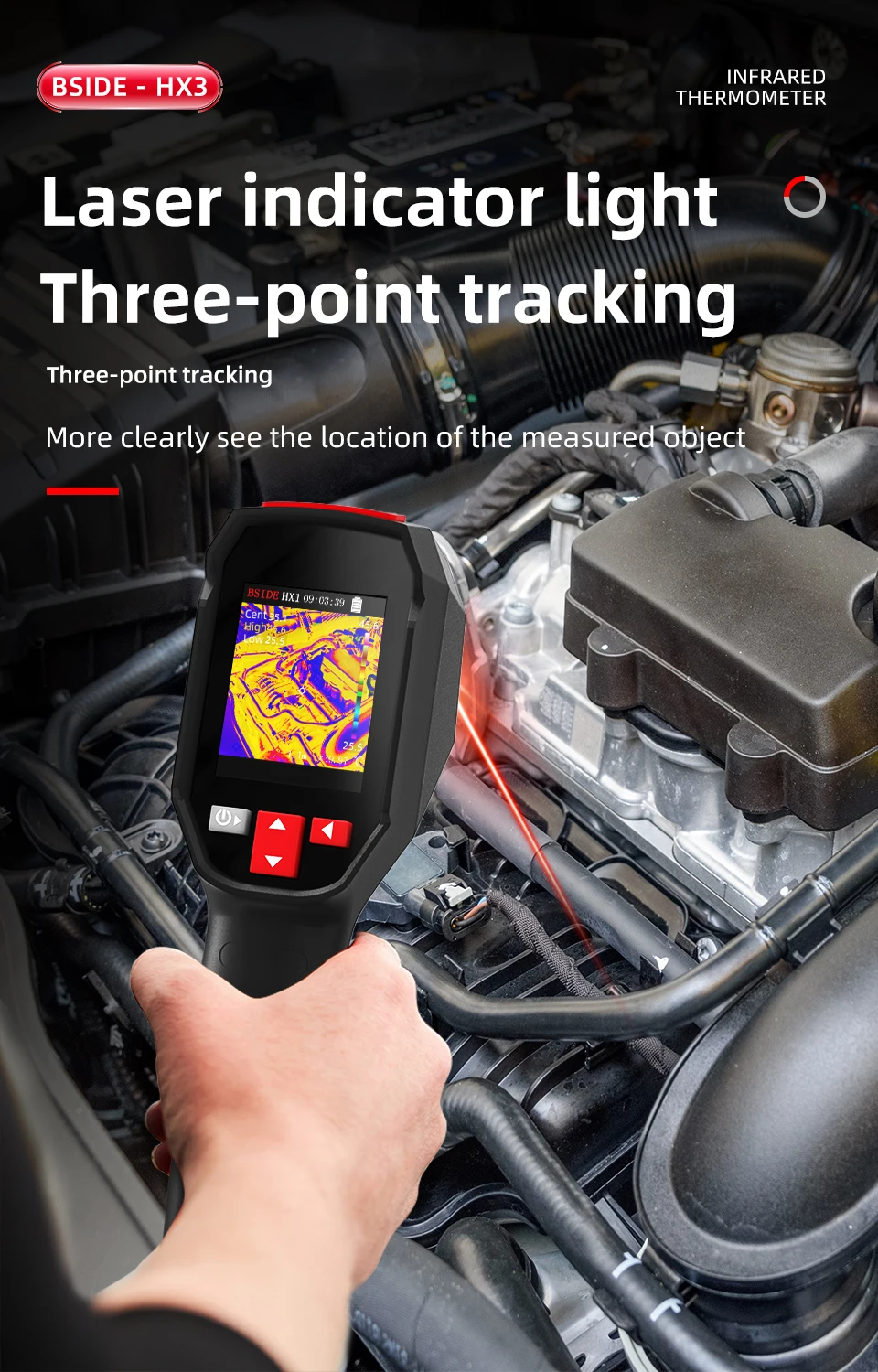

Laser Indicator/LED Illumination Laser Indicator/LED Illumination



Emissivity: 0.01~1

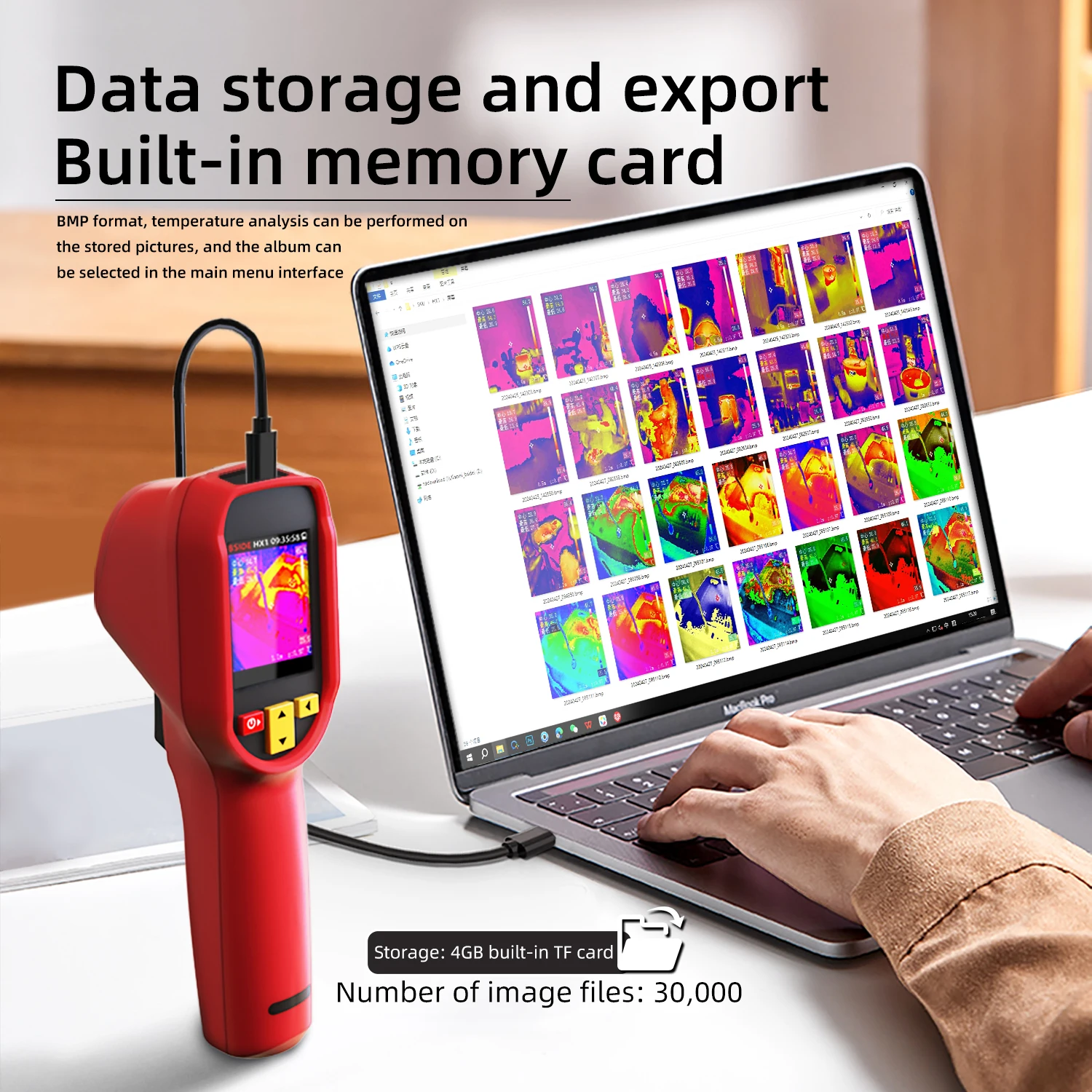

Storage: 4GB built-in TF card



Adjustable emissivity



Power supply: 2500mA lithium battery

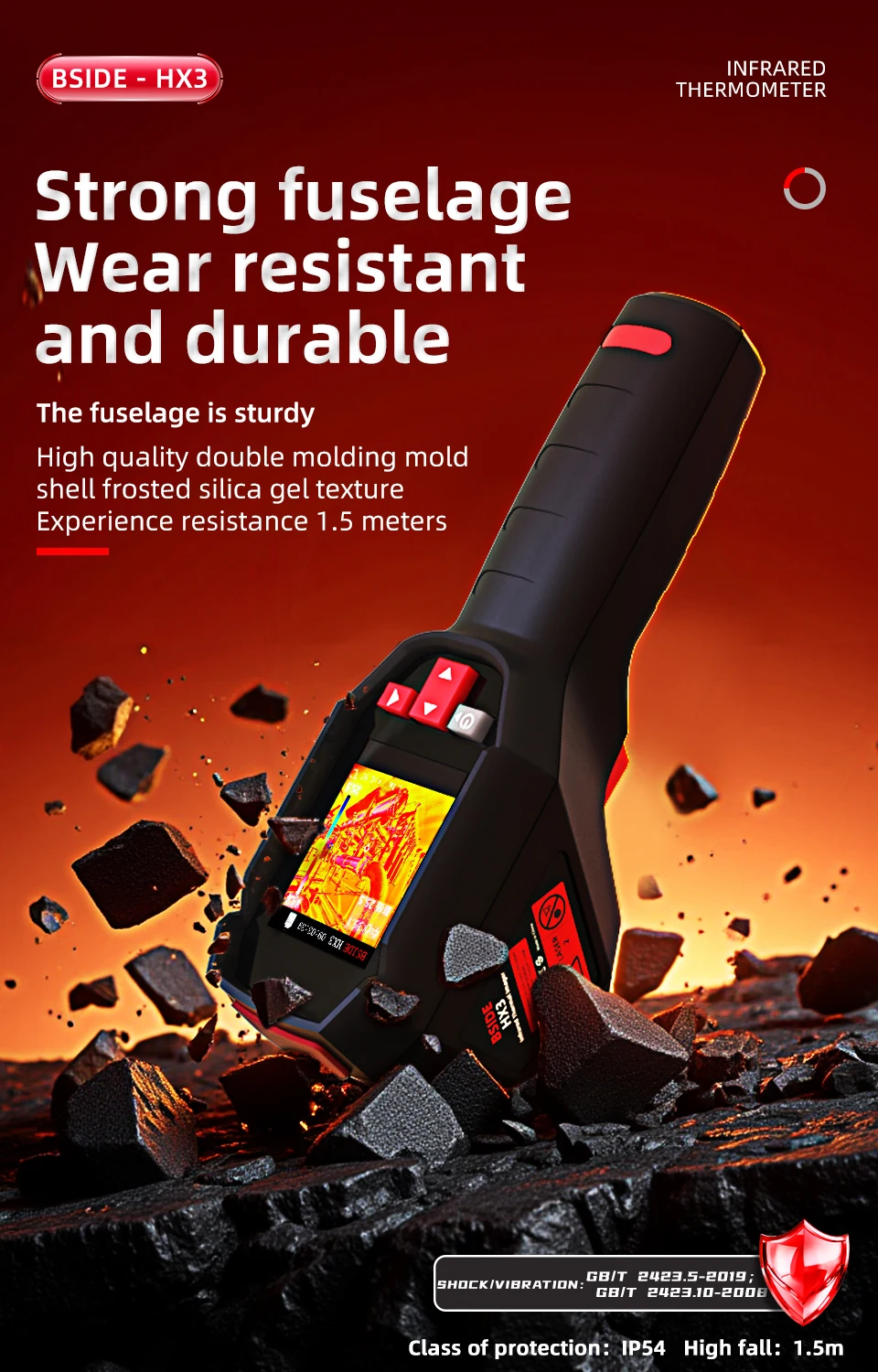

Three-proof design: IP54/1.5m anti-drop



The bottom design has screw holes for use with a tripod



Product Differences:

The performance of the BSIDE HX1 is exactly the same as that of the HX3, the difference is the body process.

BSIDE HX1：The body adopts double injection molding process Durable.
BSIDE HX3：The body adopts single injection molding process，Better value for money.

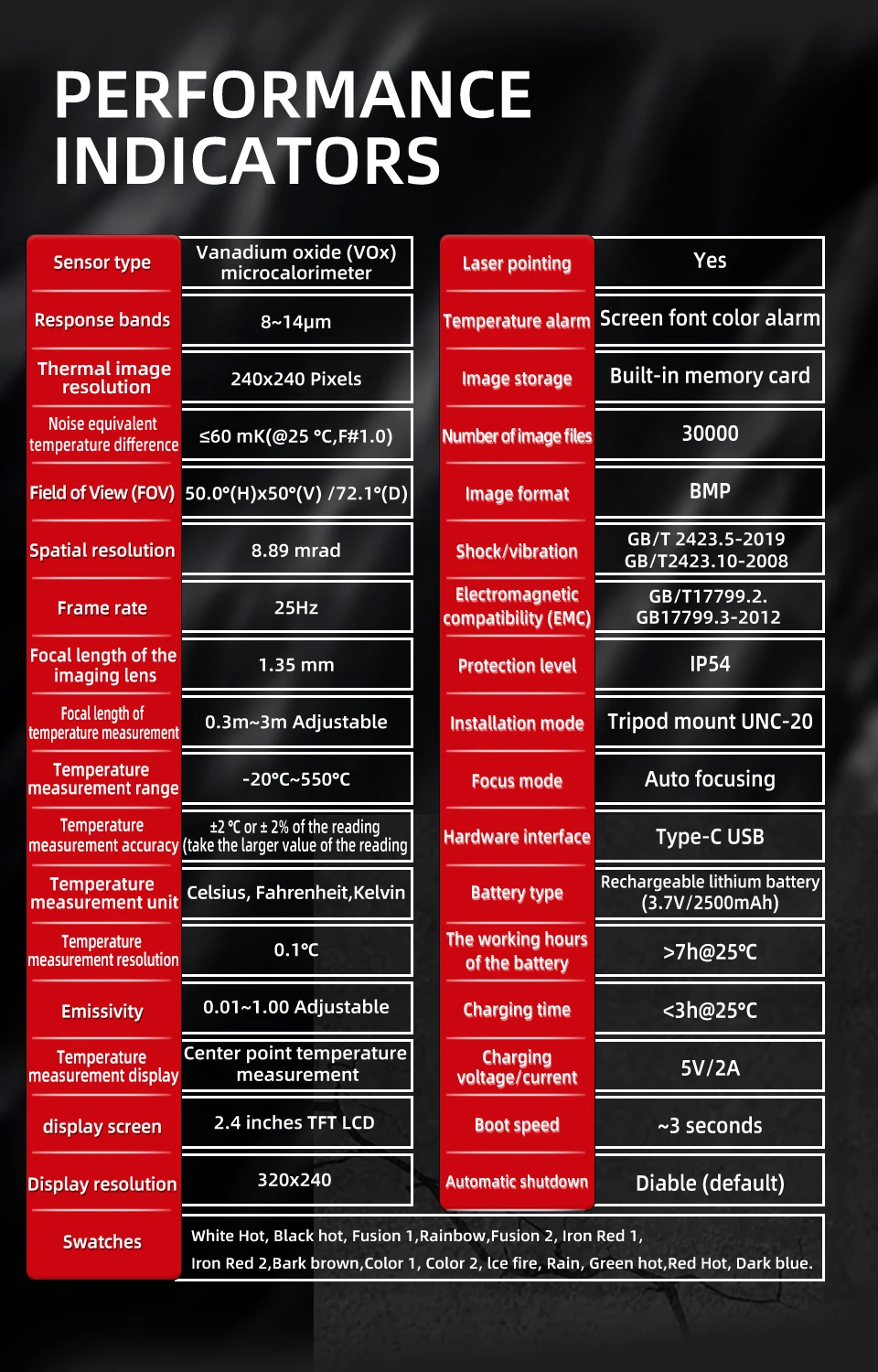

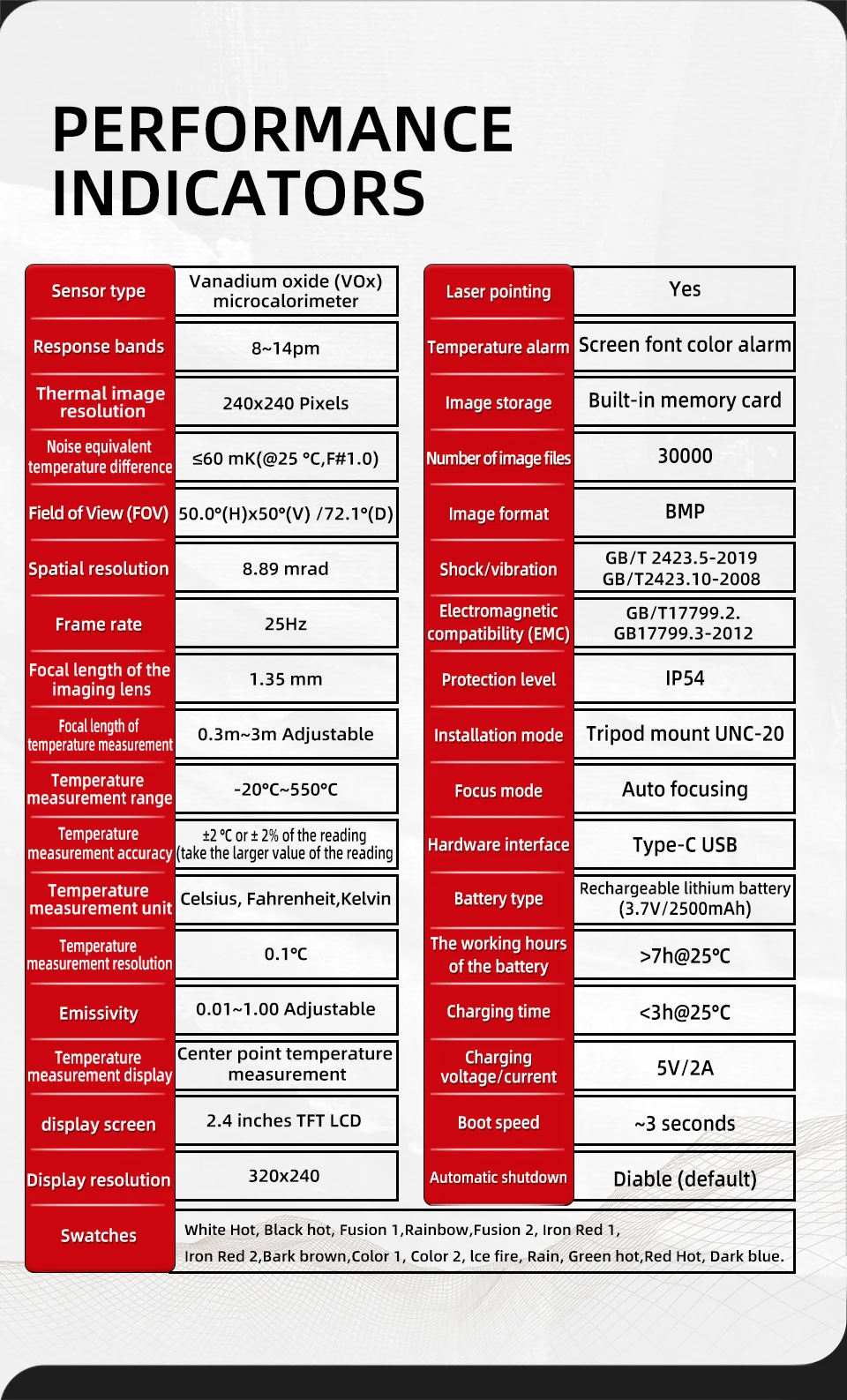

Product Model: BSIDE HX1/HX3



Sensor type: Vanadium oxide microbolometer



IR resolution: 240 x 240



Response band: 8-14 μ m



Frame rate: 25Hz



NETD：< 60mK @ 25 °C

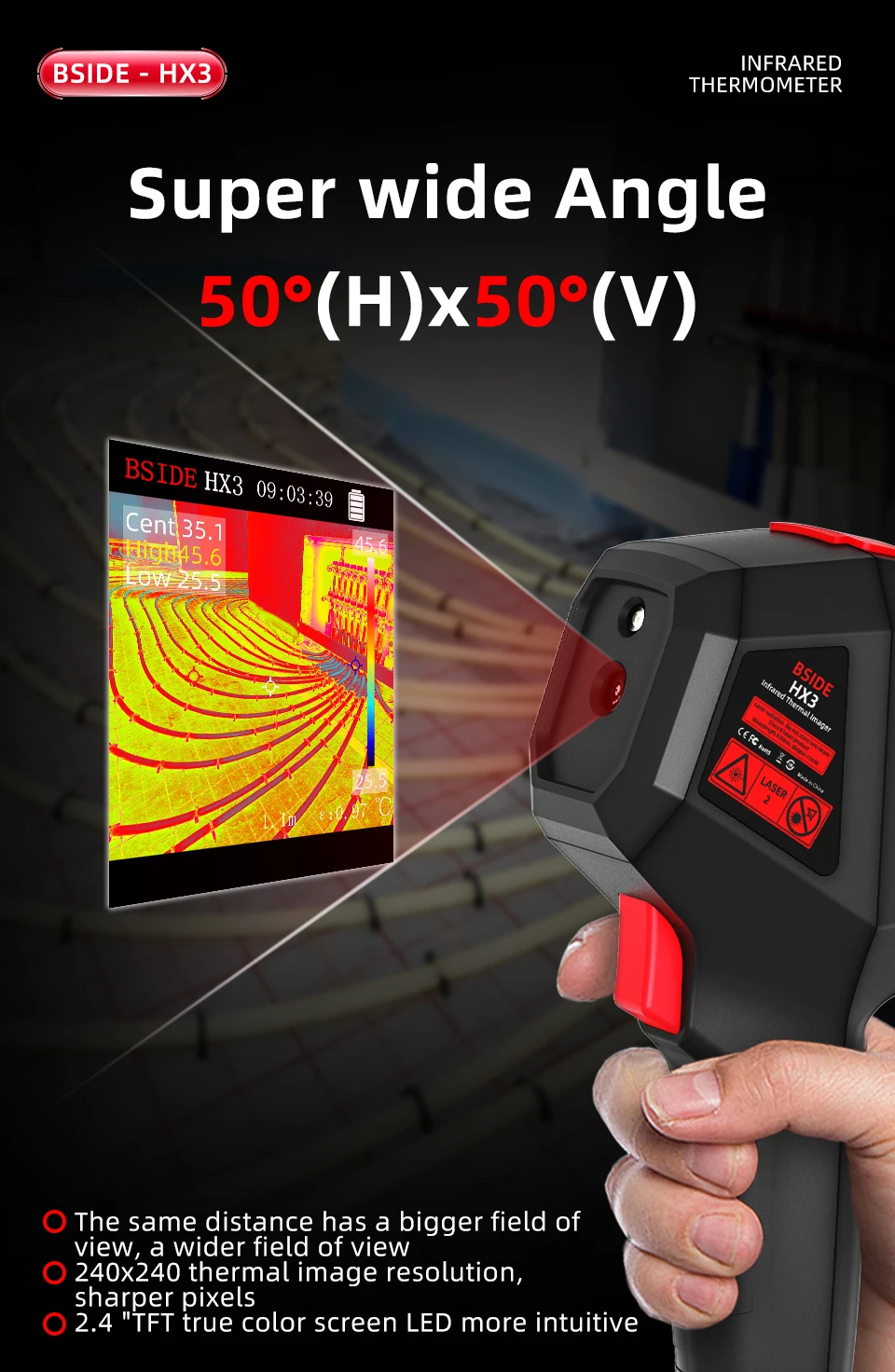

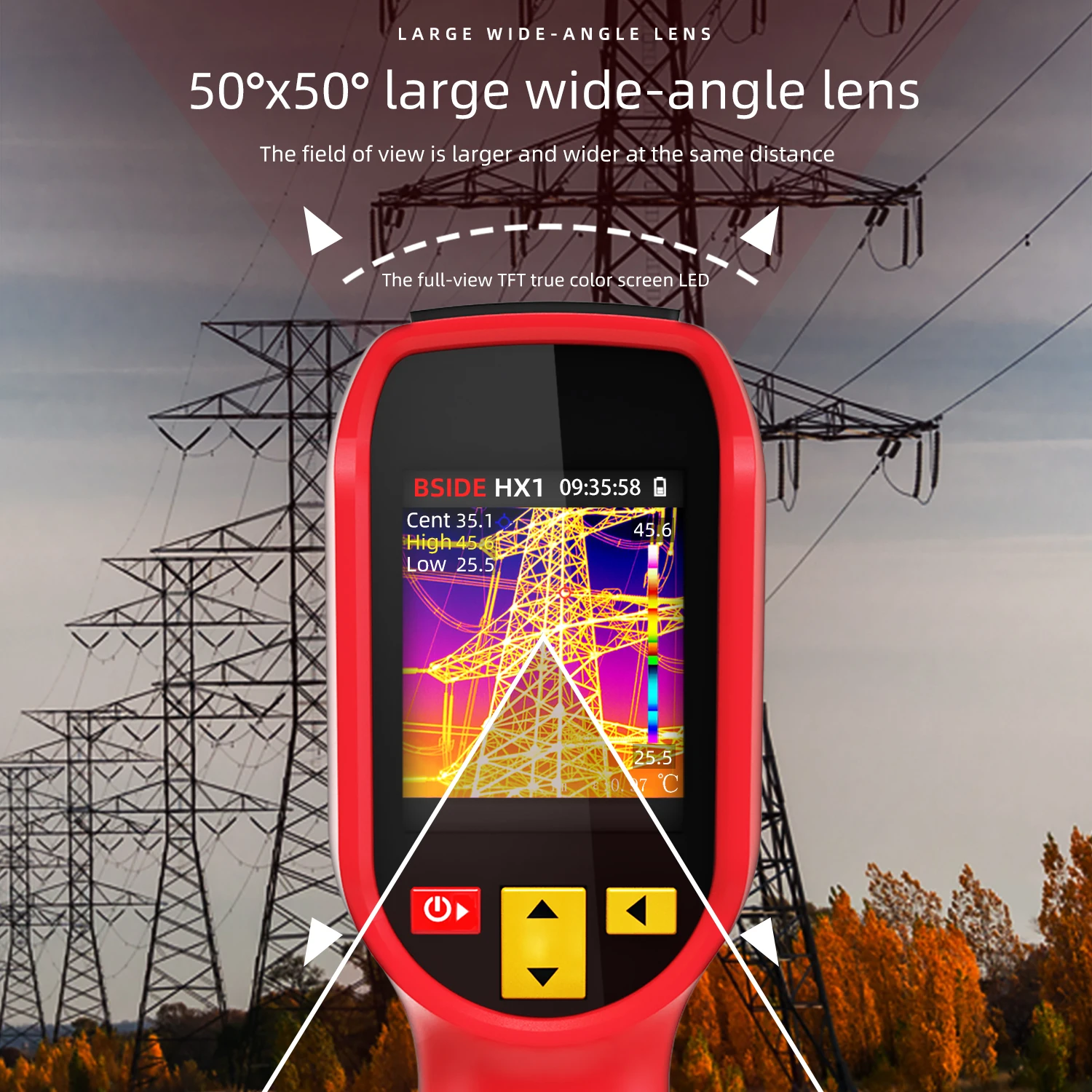

Field of view (FOV): 50°H×50°V/72.1°D



Spatial resolution (IFOV): 8.89mrad



Focal length of imaging lens: 1.35mm



Temperature measurement focal length: 0.3m~3m adjustable



Temperature measurement range: -20 °C to 550 °C



Temperature accuracy: ± 2 °C/± 2% (maximum reading)

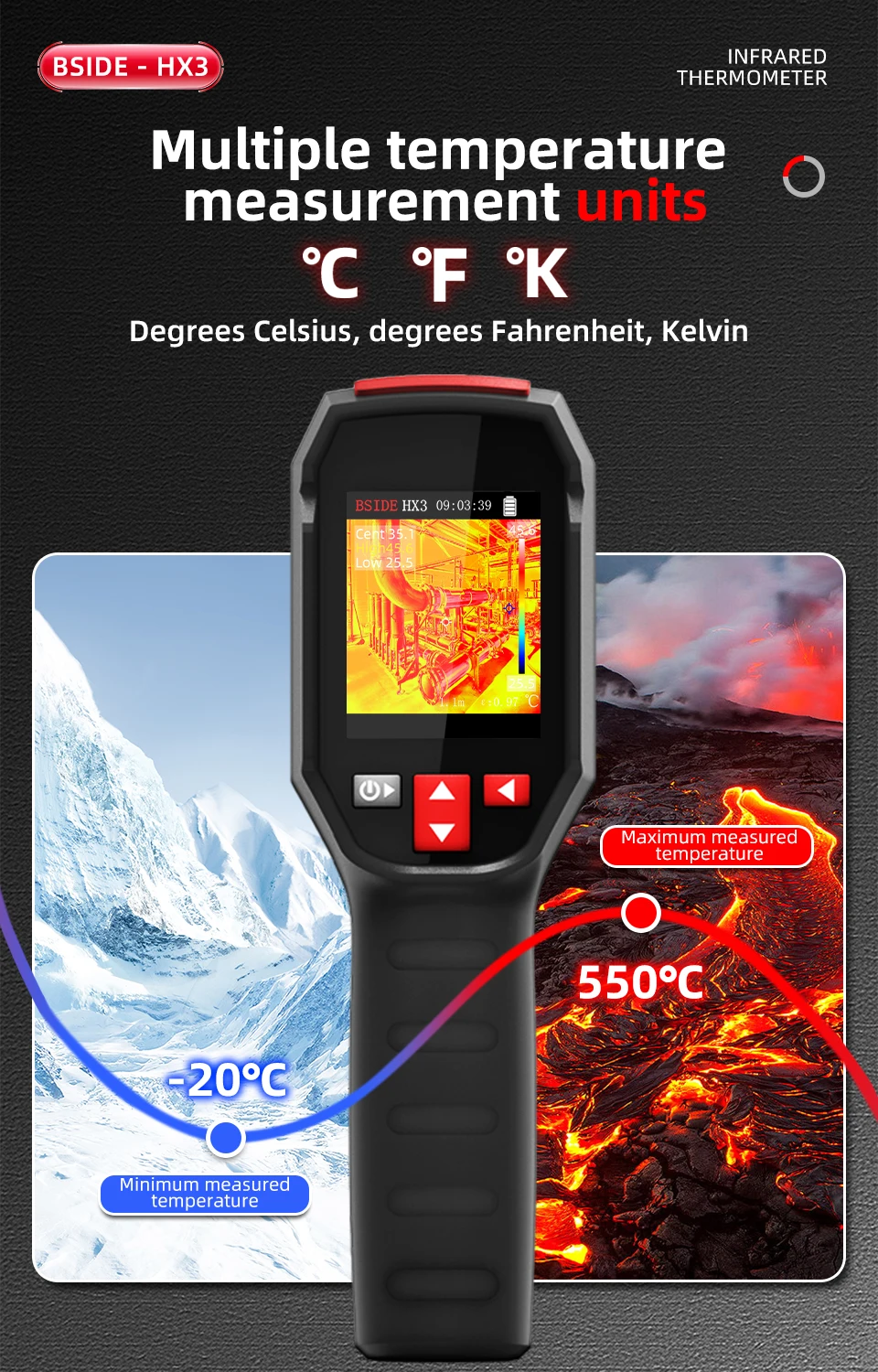

Temperature measurement unit: °C/°F/Kelvin



Temperature measurement resolution: 0.1°C



Emissivity: 0.01~1.0 adjustable

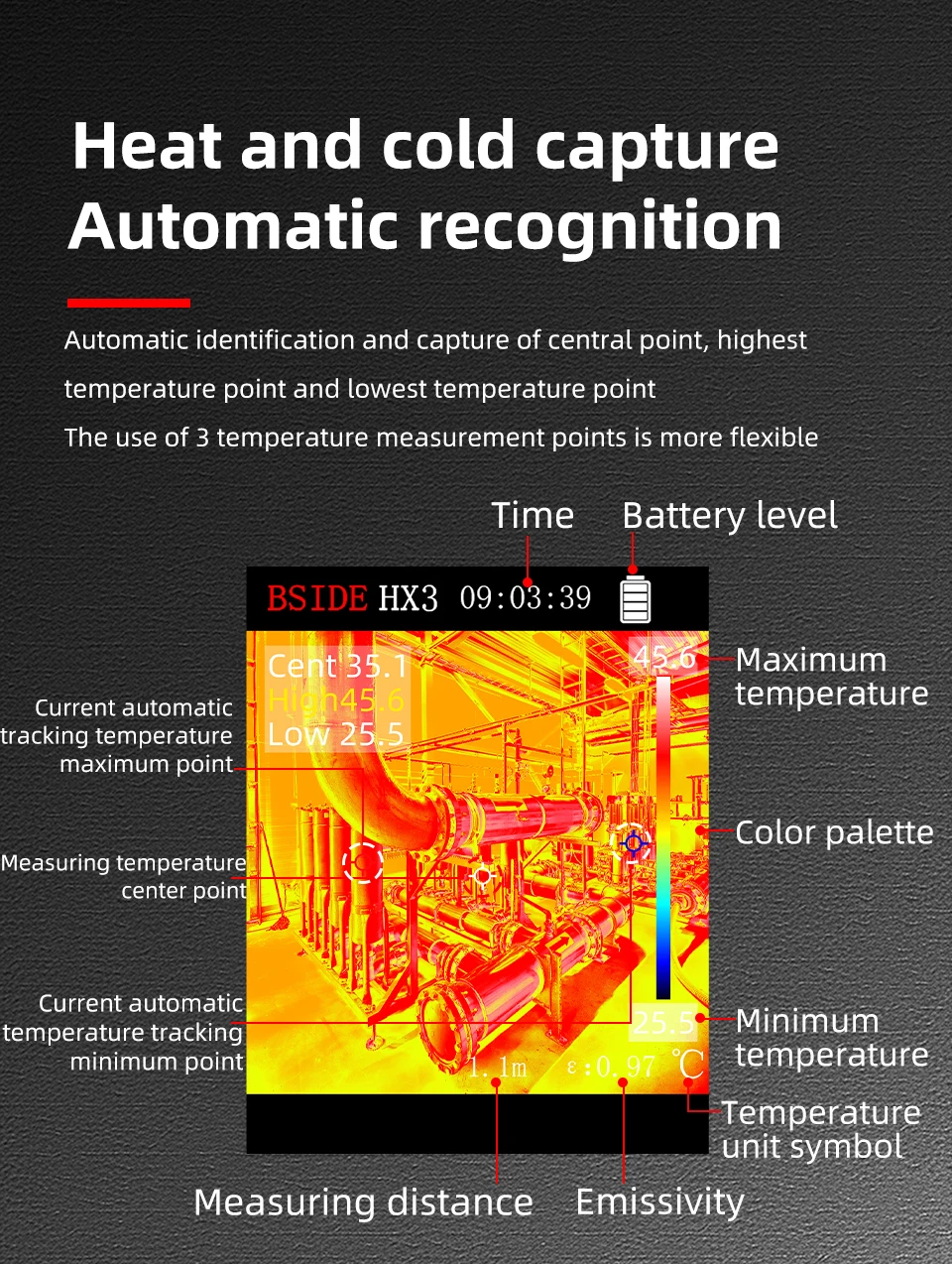

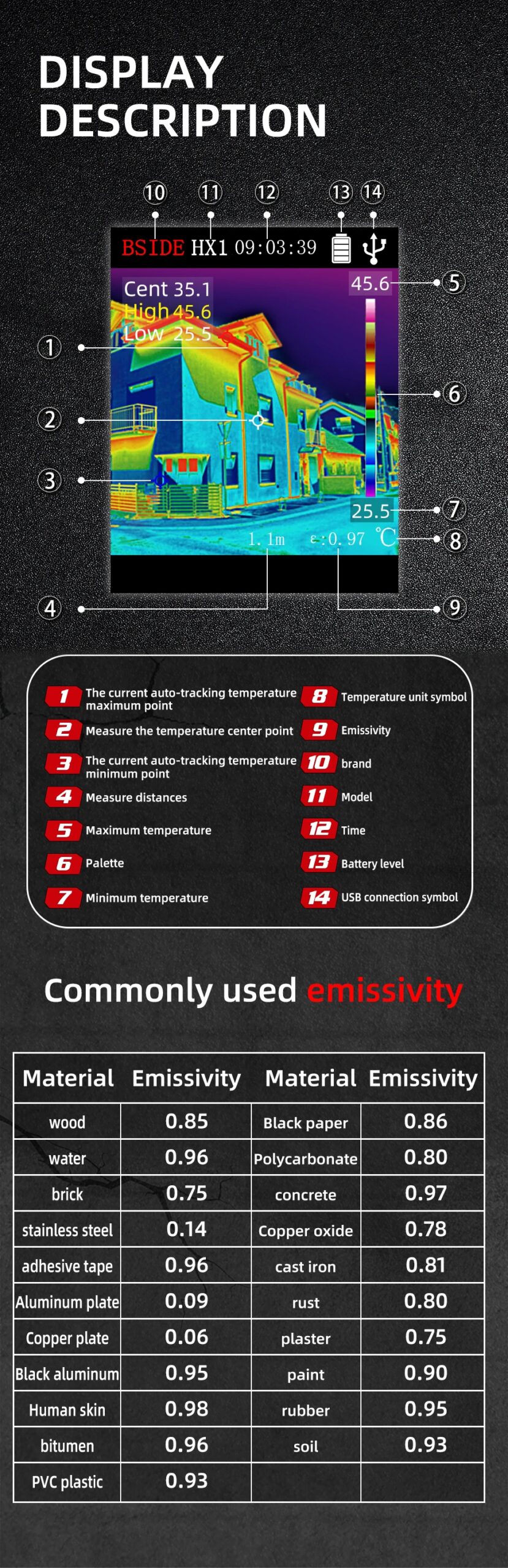

Temperature measurement display: central point temperature measurement, high and low temperature tracking

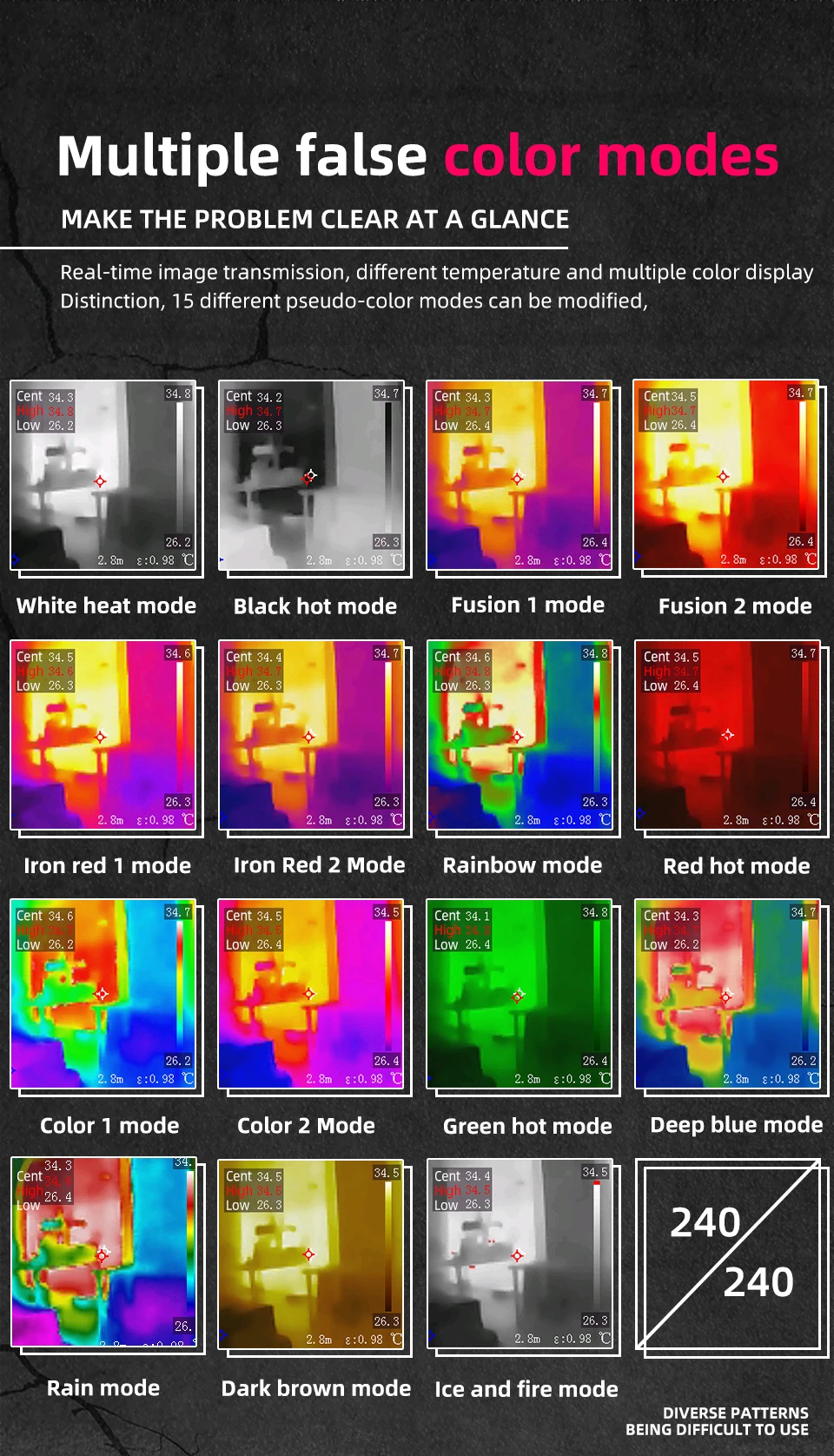

Color Palette: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Dark Sepia, Color 1, Color 2, Iron Red 1, Iron Red 2, Fire and Ice, Rain, Green Hot, Red Hot, Dark Blue



Display: 2.4 inch TFT LCD screen



Display resolution: 320 x 240px

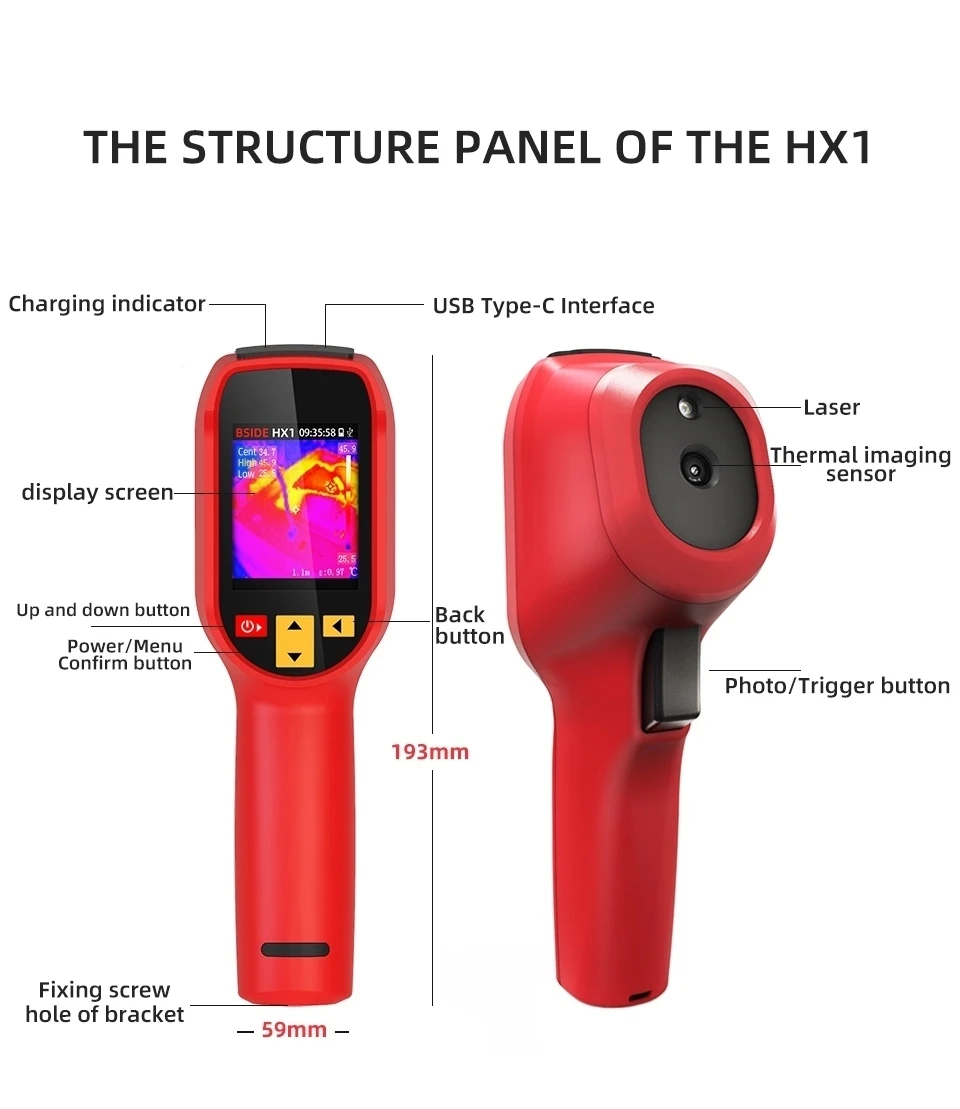

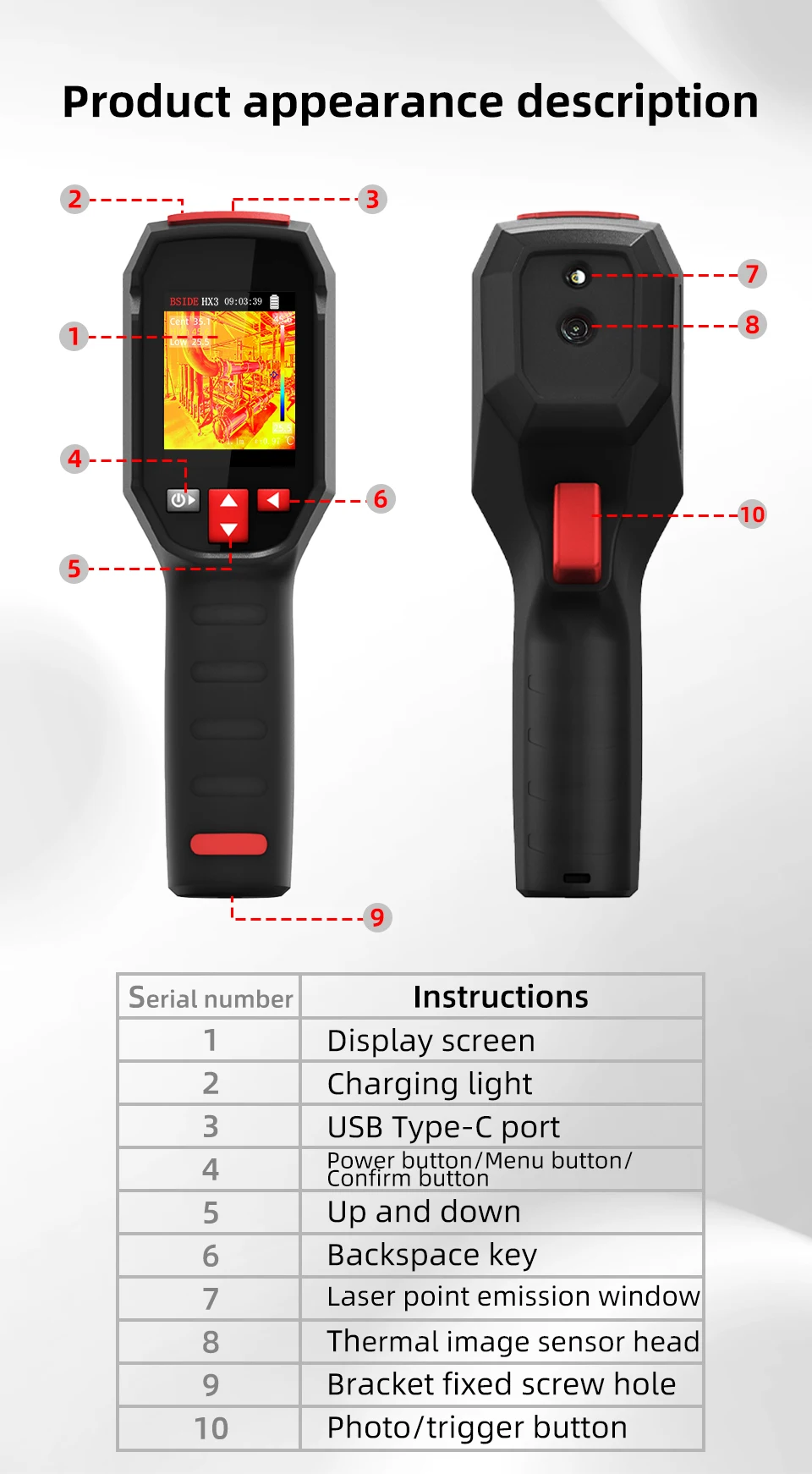

Buttons: Power button, Up button, Down button, Back button, Trigger button

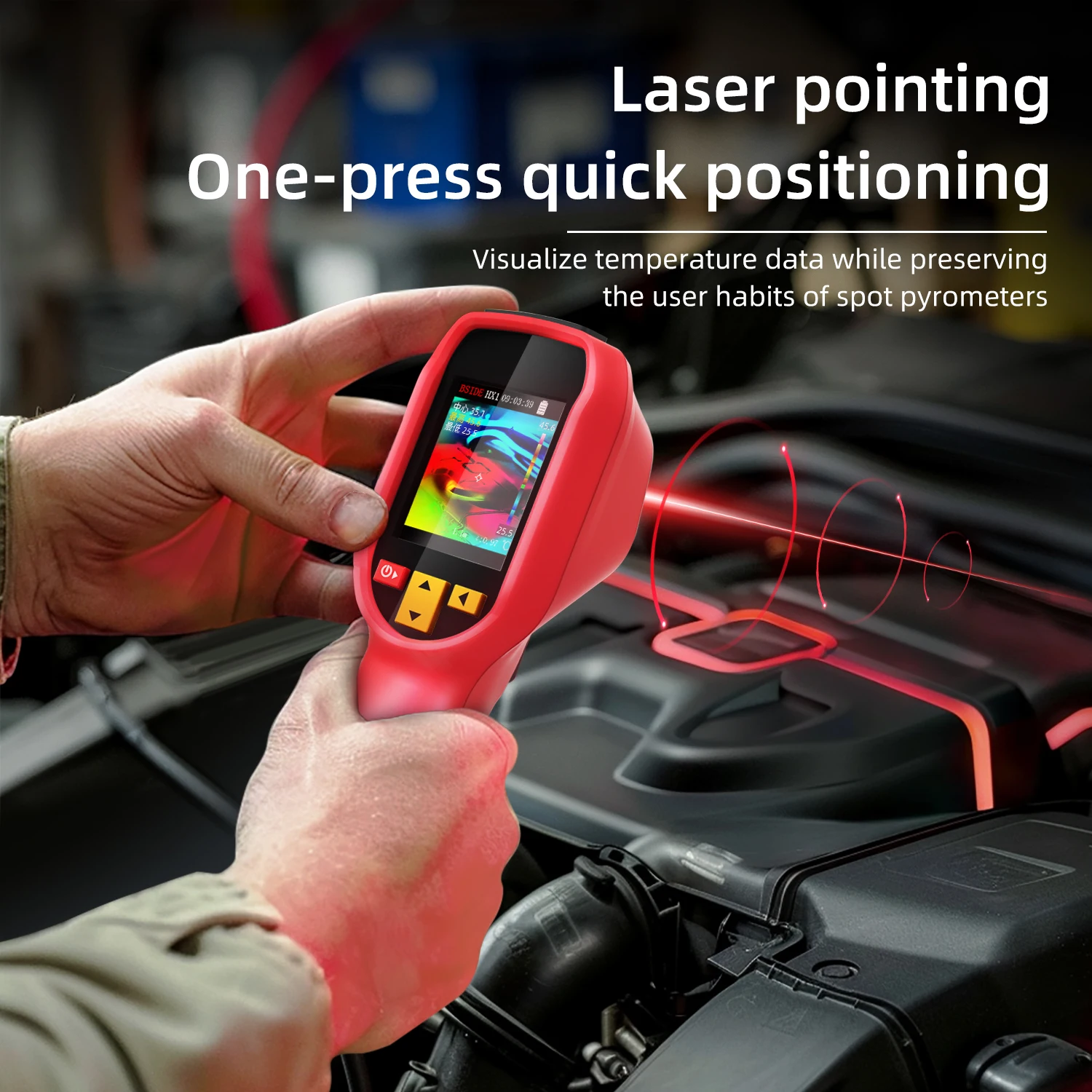

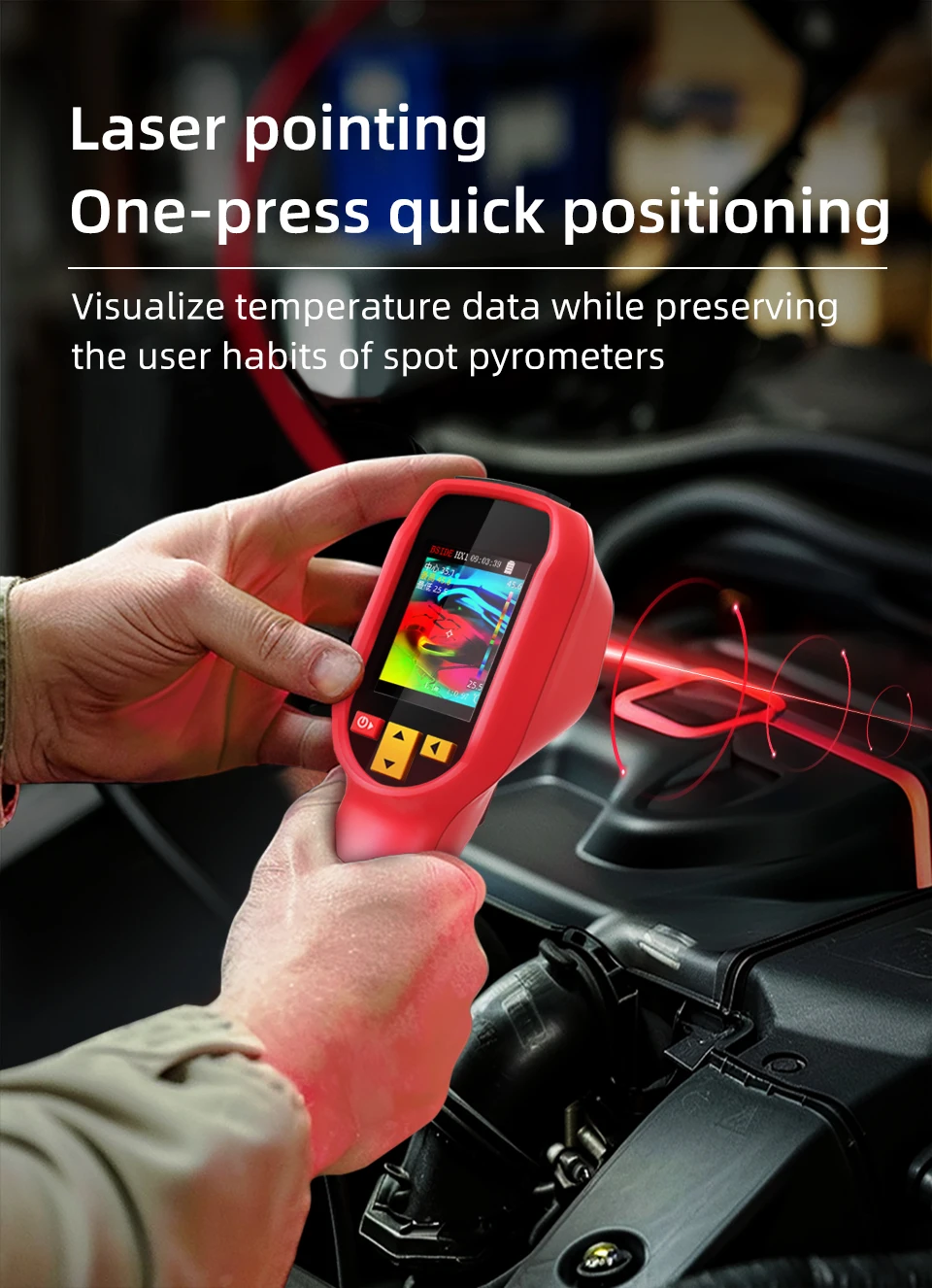

Laser indication: Yes

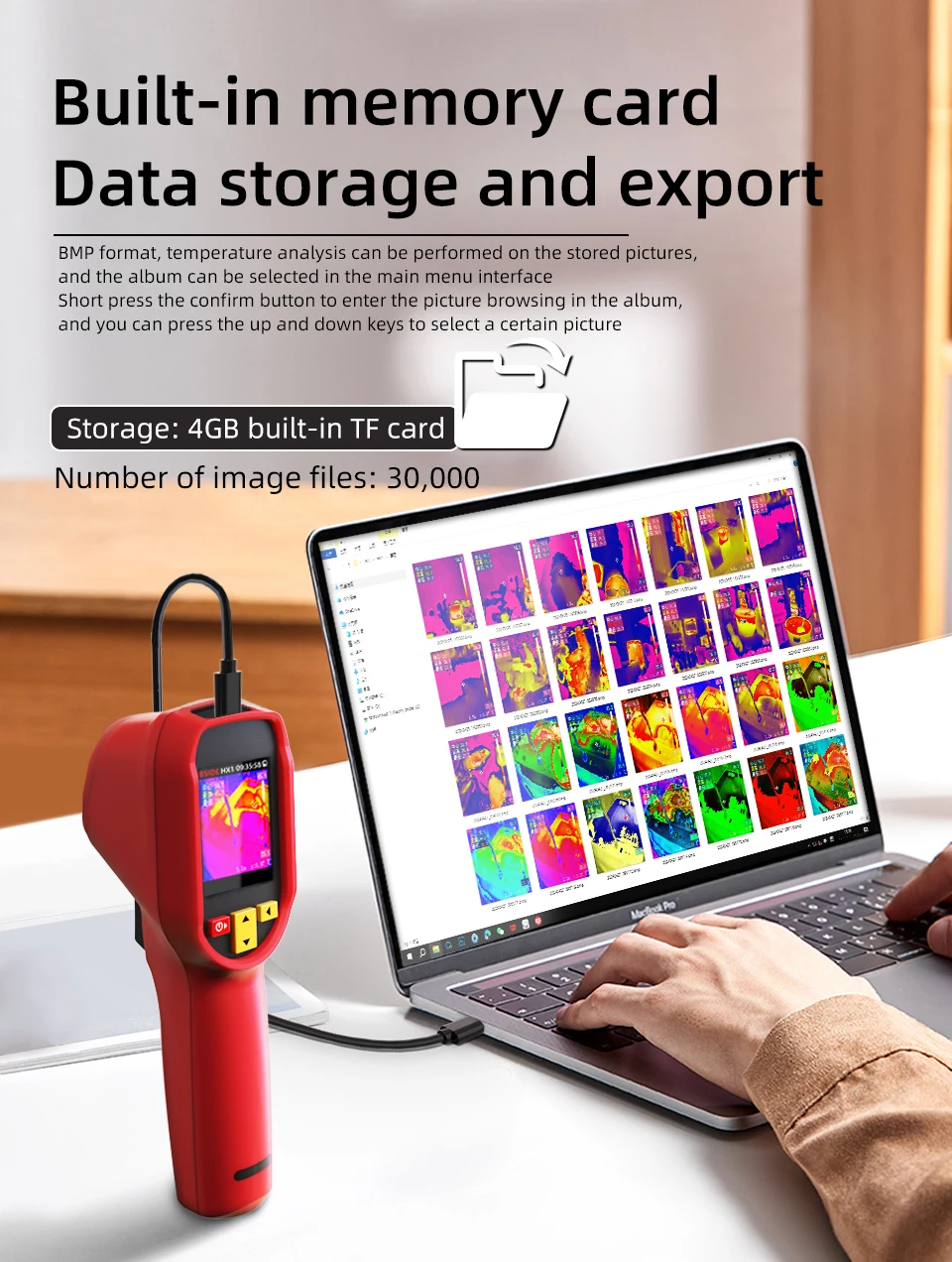

Storage: Built-in memory card



Number of image files: 30,000



Image format: BPM



Focusing method: Autofocus



High and low temperature tracking: √



Temperature alarm: Screen font color alarm

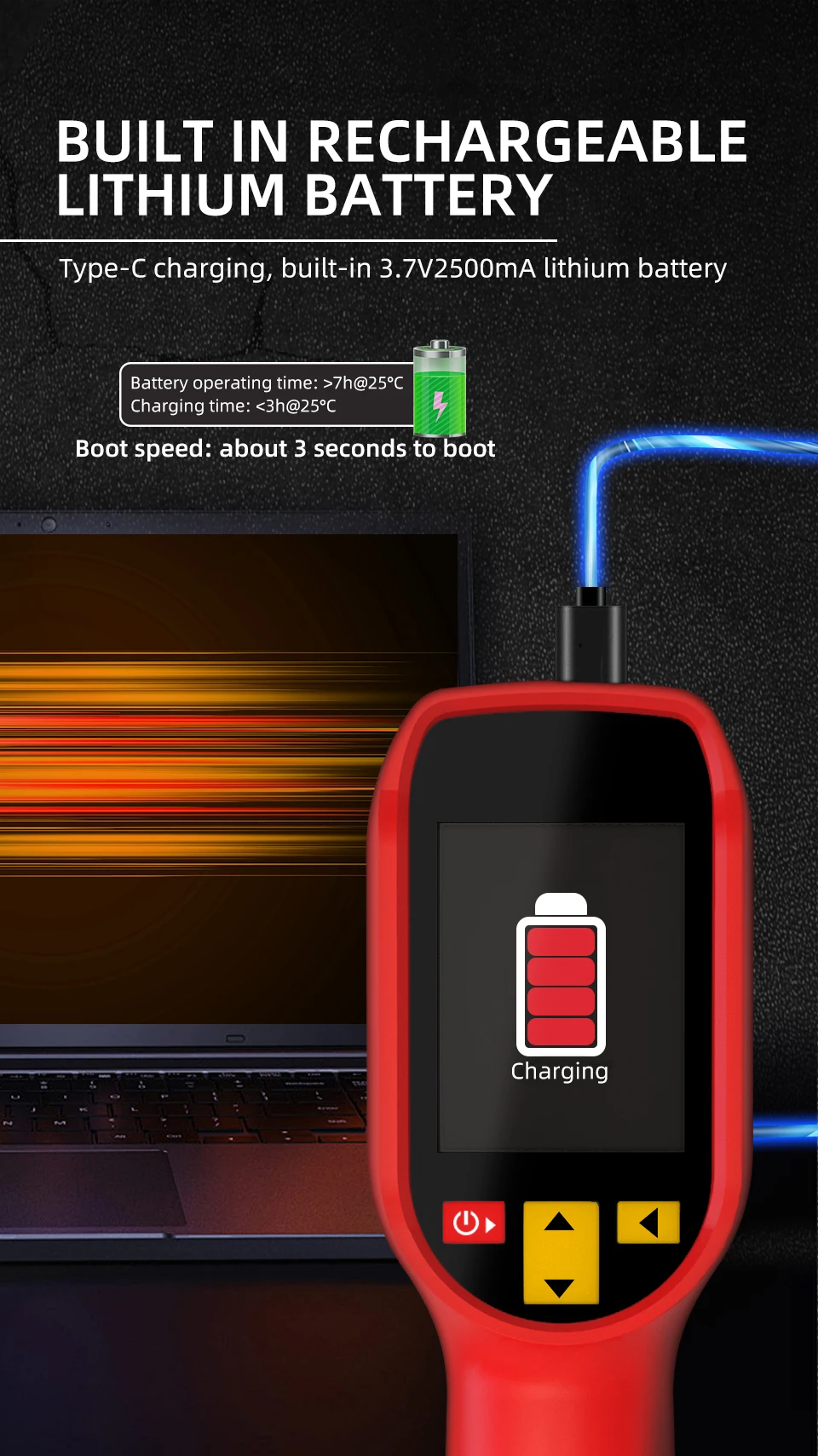

Battery type: Rechargeable lithium battery (3.7V/2500mAh)



Charging system: Type-C direct charging



Data interface: Type-C USB



Illumination/Laser Instruction: √



Protection Rating/Fall Protection Rating: IP54/1.5m

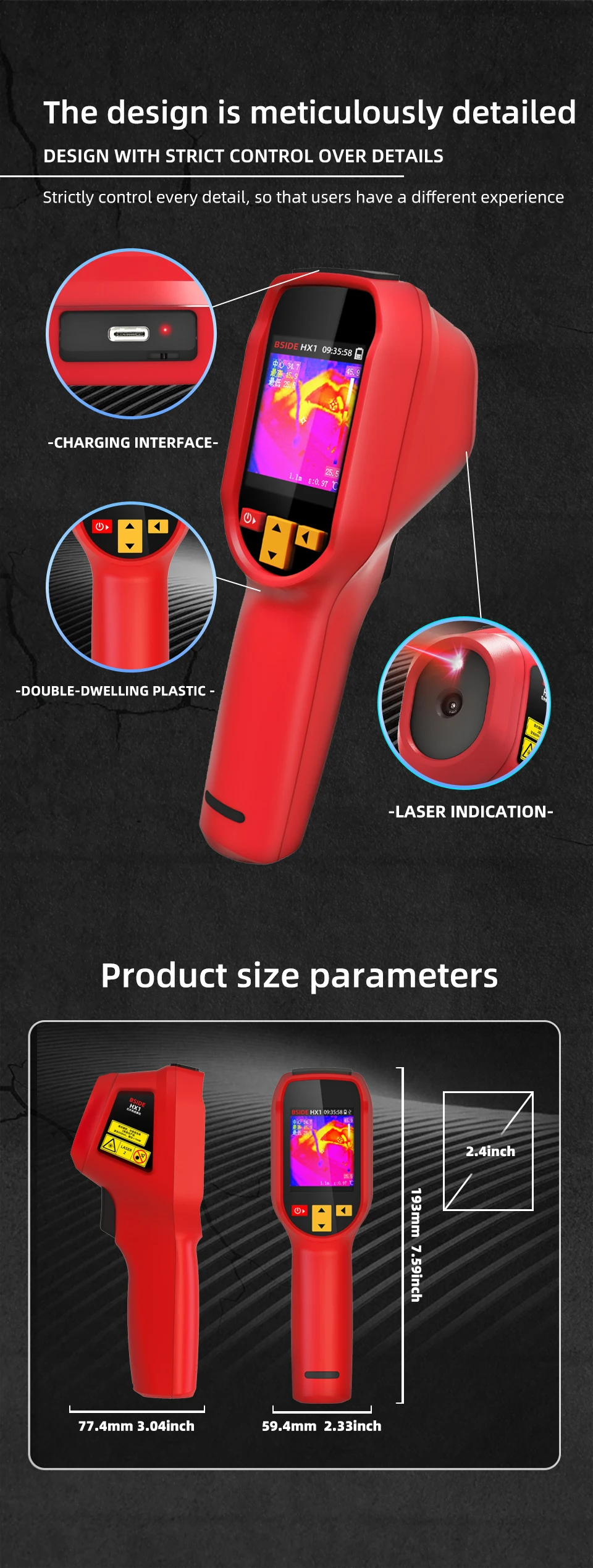

Dimensions (L x W x H): 193.4 x 59.4 x 77.4 mm
